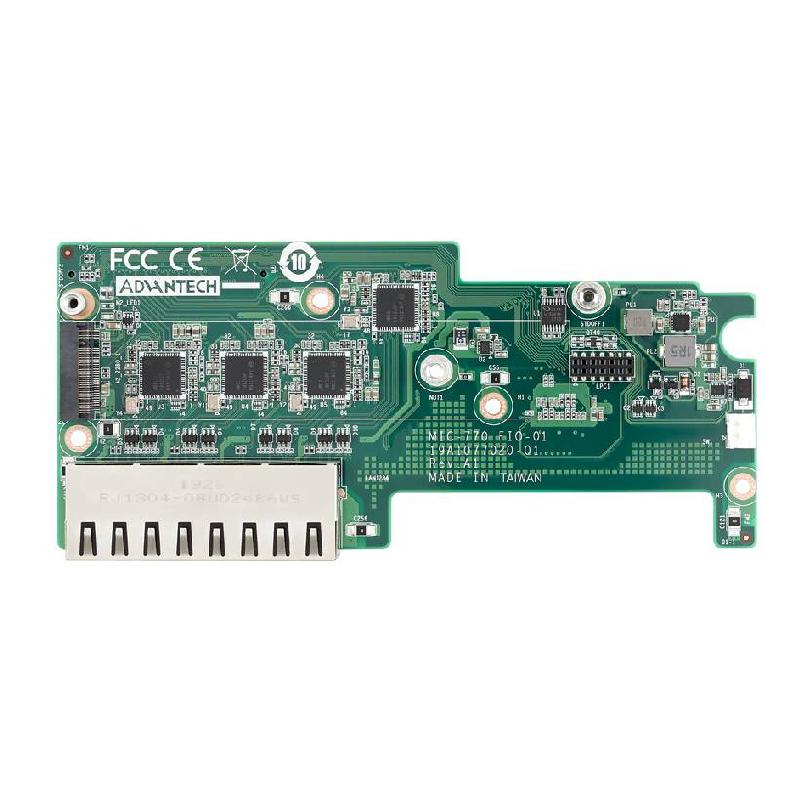

研華98910770301 Advanced Flex I/O for NVMe M.2 + 4x GbE LAN

研華98910770301 Advanced Flex I/O for NVMe M.2 + 4x GbE LAN

  • Flexible expansion for additional I/O and functions in MIC-7 systems
  • Expansion on the front for same-side cabling for easy maintenance
  • Keeps compact size, fanless design, and wide operating temperate advantages of MIC-7 series
  • Supports NVMe M.2 SSD via PCIe x4, faster read/write speed than SATA
  • Special design NVMe heatsink with thermal pad, compatible with different NVMe for heat dissipation

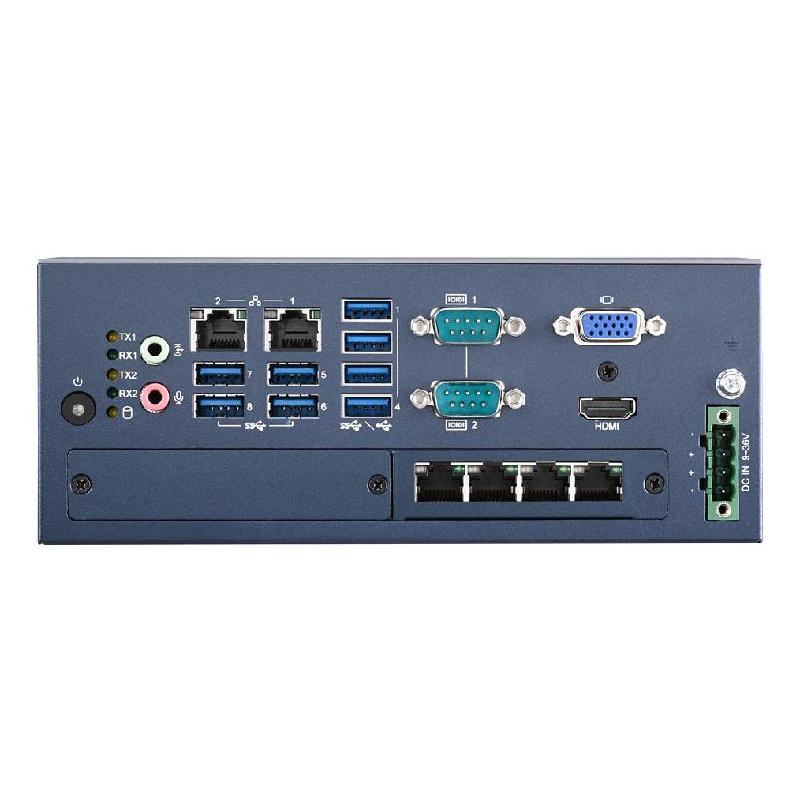

  • Supports four GbE LAN, each with dedicated PCIe lane

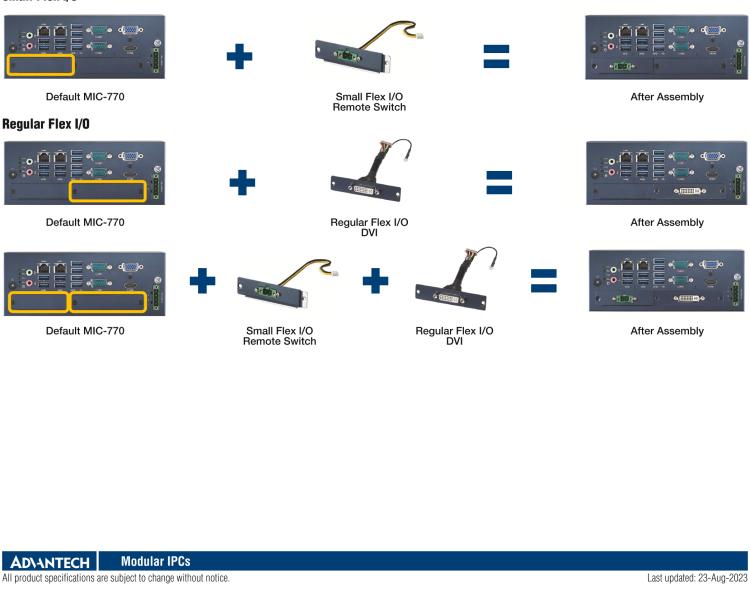

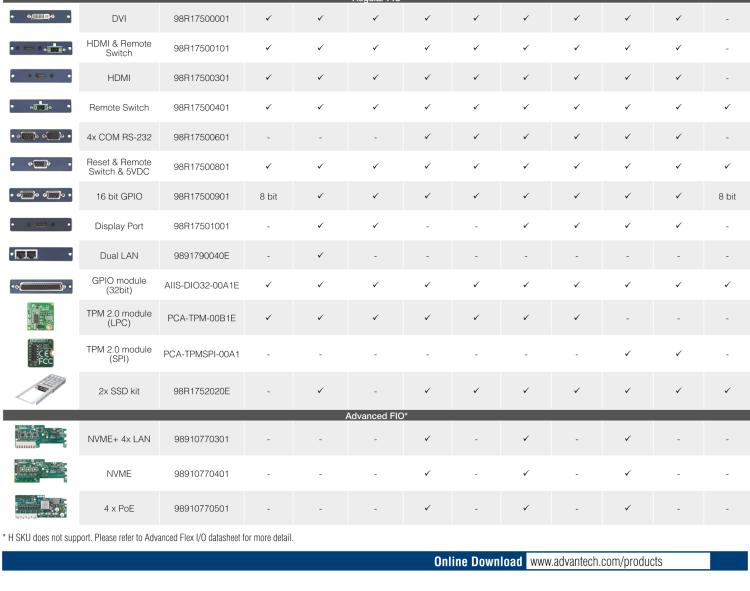

  • Compatible with MIC Regular FIO, i-Module, and Advantech iDoor

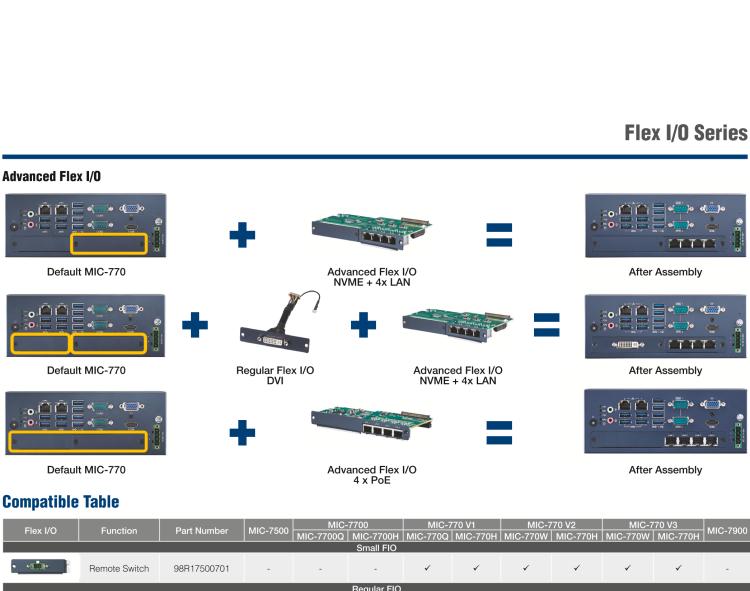

  • The new Advanced Flex I/O Series is designed to support more I/O and superior functionality while keeping the advantages of the MIC-7 series: compact, fanless design, and a wide-operating temperature range.
