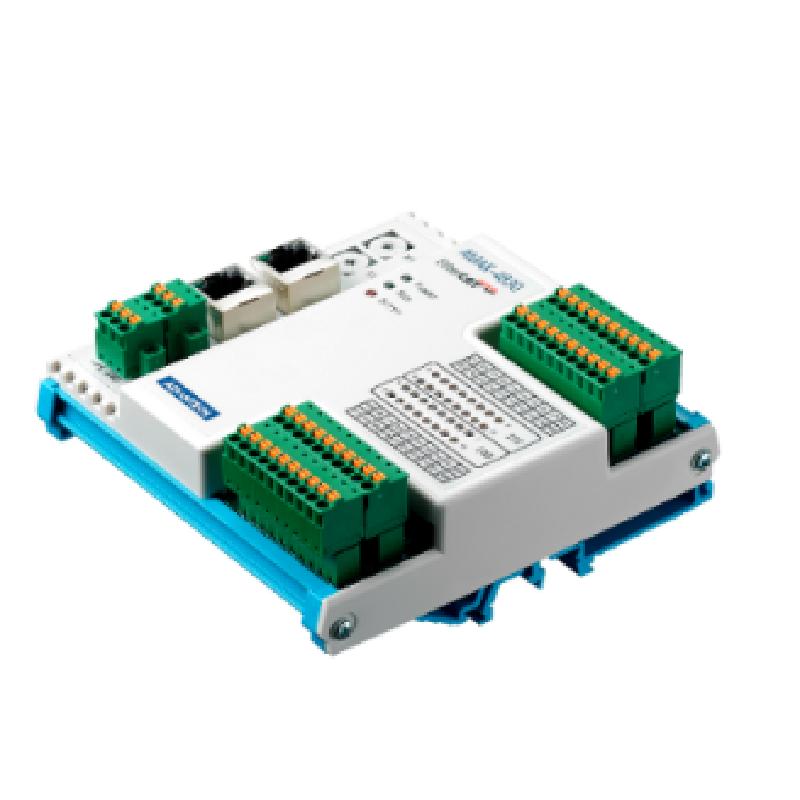

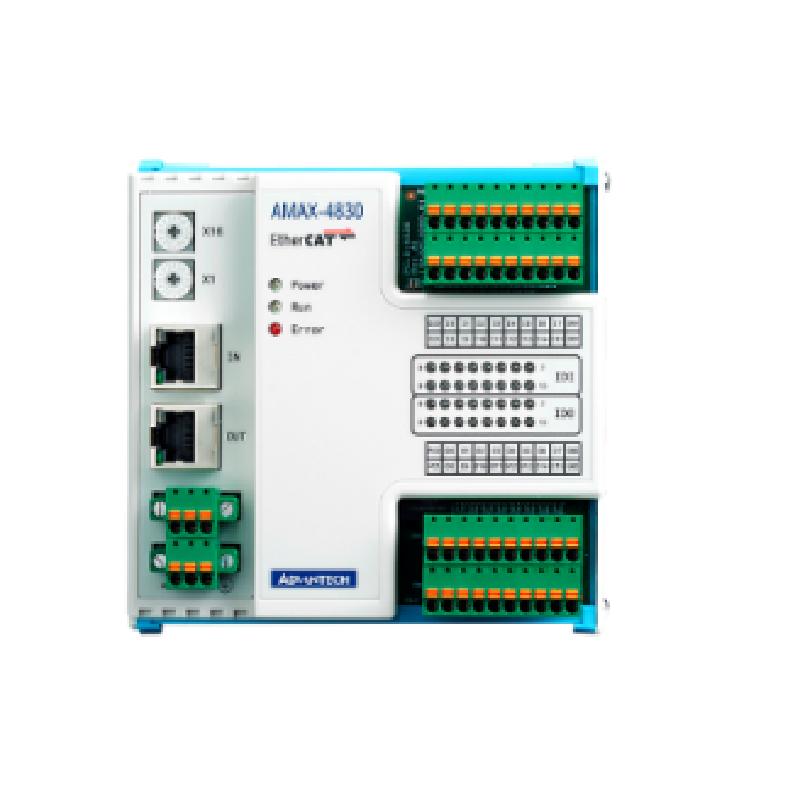

研華AMAX-4830 16-ch Isolated Digital Input and 16-ch Isolated Digital Output EtherCAT Remote I/O Module

研華AMAX-4830 16-ch Isolated Digital Input and 16-ch Isolated Digital Output EtherCAT Remote I/O Module


  • Suitable for EtherCAT networks
  • 16-ch digital input and 16-ch digital output with 2,500 VDC isolation
  • Wide input voltage range (10 ~ 30 VDC)
  • Wide output voltage range (5 ~ 40 VDC) and high output current (350 mA/ch)
  • Quick removable European type connector
  • LED indicators for I/O status
  • Supports EtherCAT Distributed Clock (DC) mode and SyncManager mode
  • Two rotary switches for up to 256 SubDevice IDs
  • The AMAX-4830 is an industrial EtherCAT SubDevice module equipped with the EtherCAT protocol. Its compact size and DIN-rail mount kit can install easily in a cabinet.
