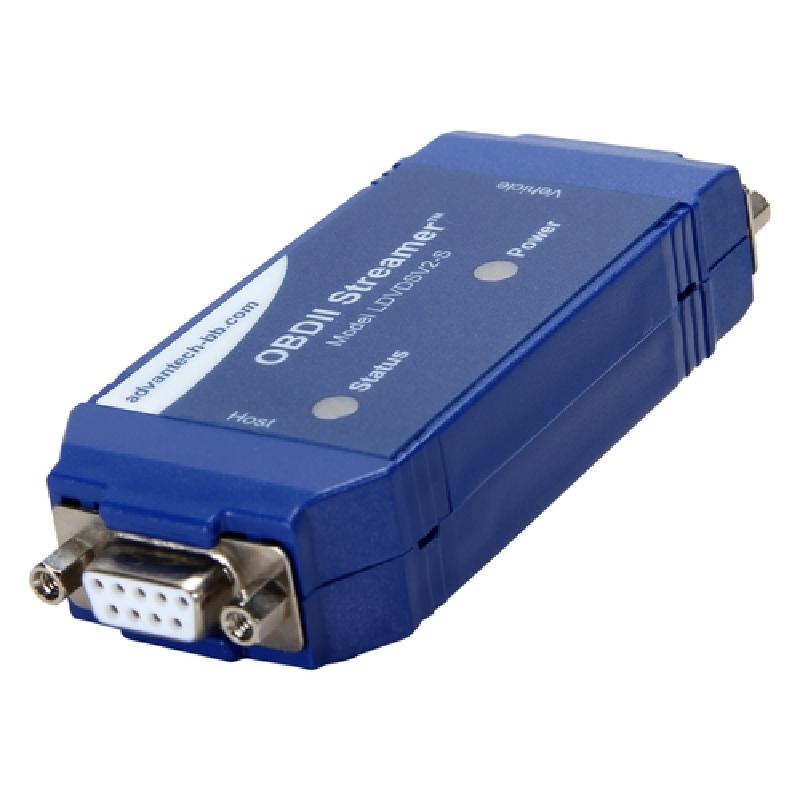

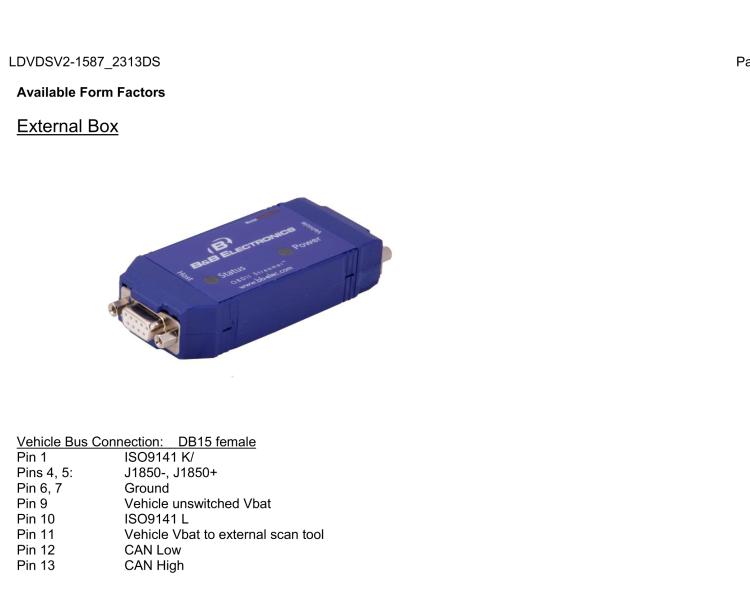

研華BB-LDVDSV2-S-P9D OBDII STREAMER W/ PIN 9 POWER OUT

研華BB-LDVDSV2-S-P9D OBDII STREAMER W/ PIN 9 POWER OUT


  • Vehicle Speed Signal Output pulse for driving external distance meters o 0V to 5V pulses, 1 kOhm output impedance. o 50% Duty Cycle o 3,500 pulses/km (5,632.7 pulses/mi.)
  • Ignition-On Signal Output

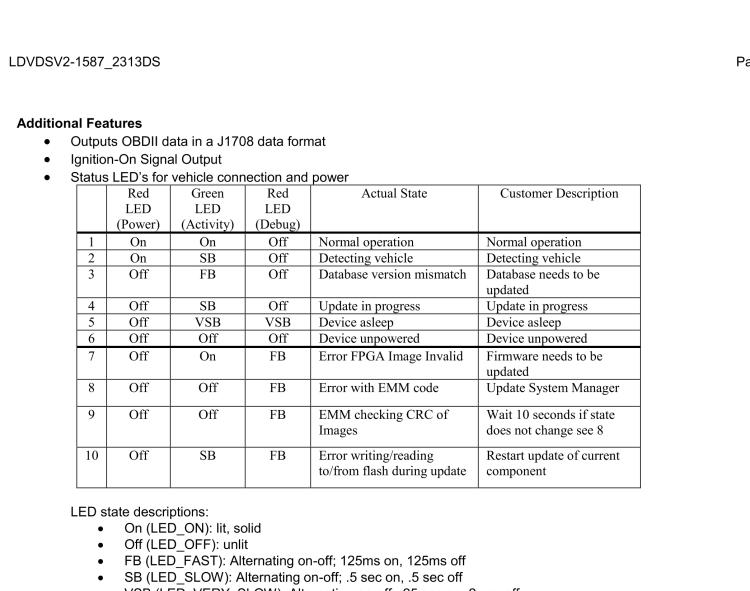

  • Status LED’s for vehicle connection and power

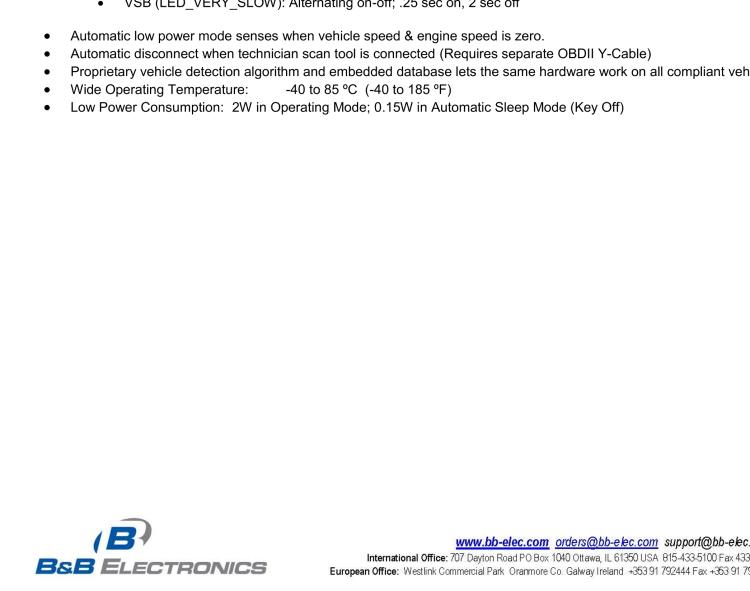

  • Automatic low power mode senses when vehicle speed & engine speed is zero.
  • Automatic disconnect when technician scan tool is connected (Requires separate OBDII Y-Cable)
  • Proprietary vehicle detection algorithm and embedded database lets the same hardware work on all compliant vehicles
  • Configurable parameter reporting by polling, at a fixed rate, or when a threshold is exceeded.
  • Wide Operating Temperature: -40 to 85 oC (-40 to 185 oF)
  • Low Power Consumption: 2W in Operating Mode; 0.15W in Automatic Sleep Mode (Key Off)
  • OBDII STREAMER W/ PIN 9 POWER OUT
