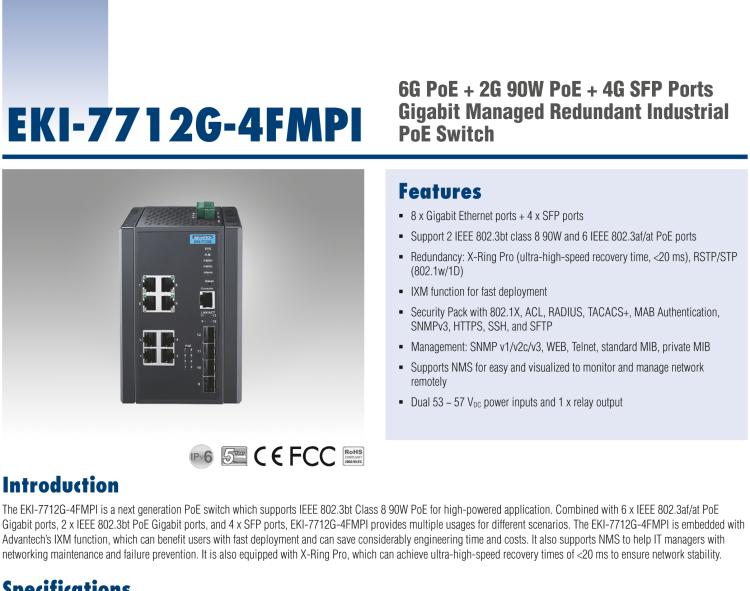

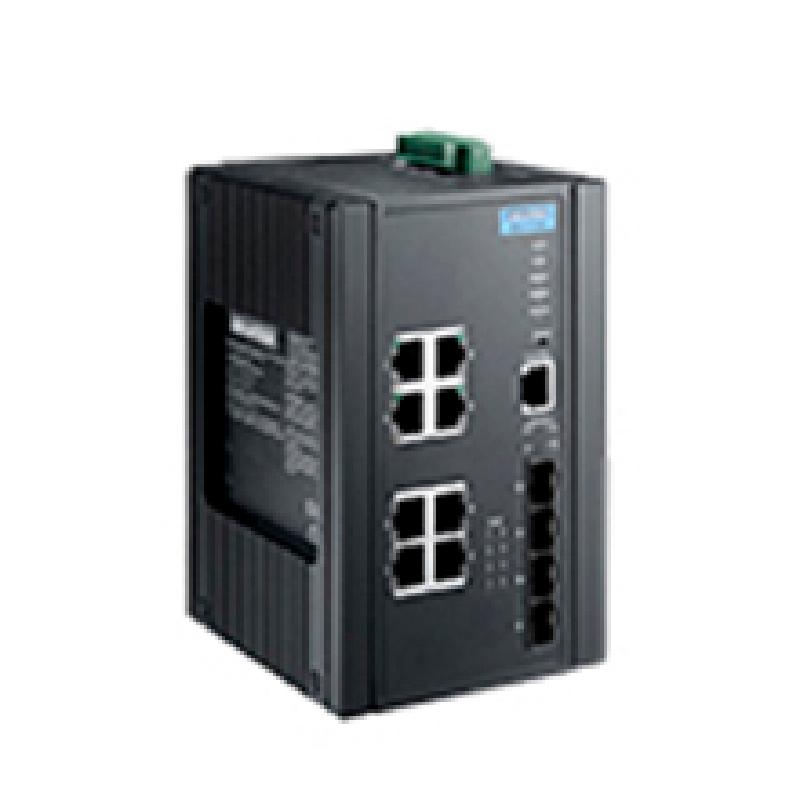

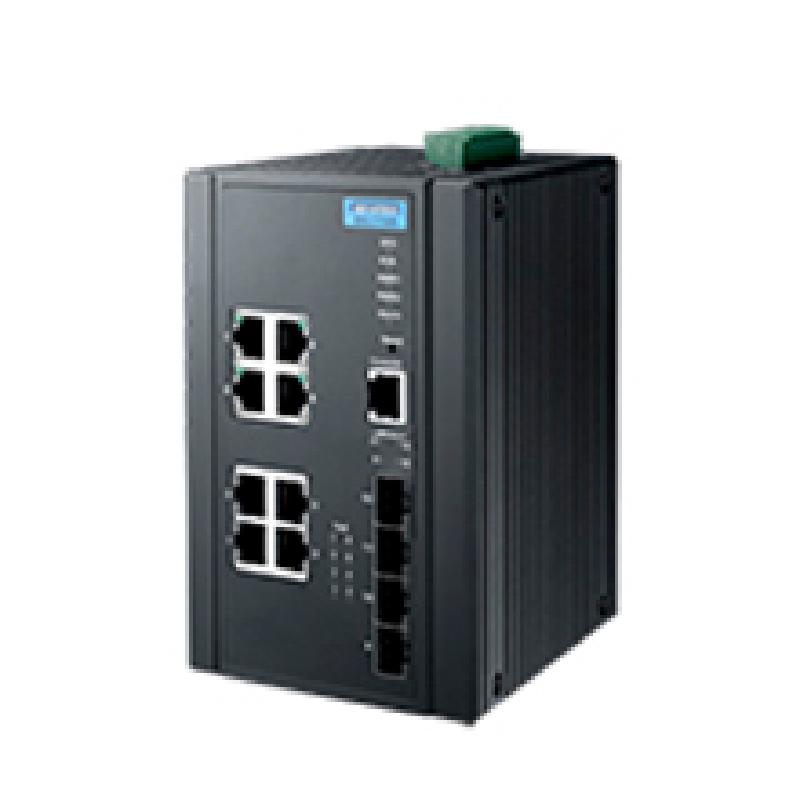

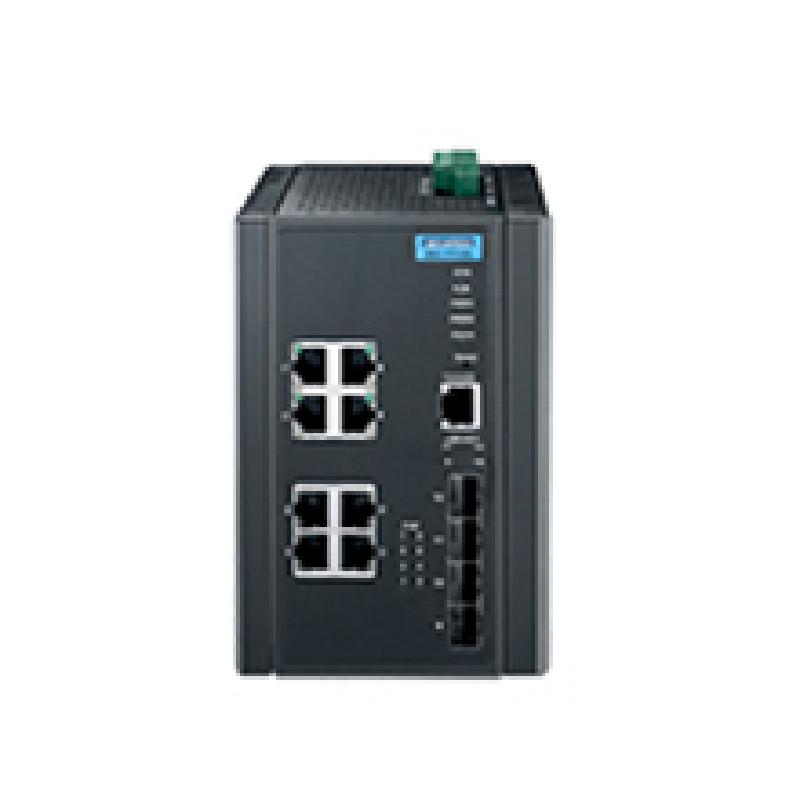

研華EKI-7712G-4FMPI 8GE PoE and 4G SFP Managed Ethernet Switch, IEEE802.3af/at/bt, 53~57VDC, -40~70℃
- Support 2 x IEEE 802.3bt class 8 90W PoE ports, 6 x IEEE 802.3at/af PoE ports and 4 x SFP ports
- Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB
- Security: 802.1x (port-based, MD5/TLS/TTLS/PEAP encryption), RADIUS
- IXM function enables fast deployment
- Redundancy: X-Ring Pro (ultra-high-speed recovery time, <20 ms), RSTP/STP (802.1w/1D)
- SFP socket for easy and flexible fiber expansion
- NEMA TS2 for traffic control
- The EKI-7712G-4FMPI is a next generation PoE switch which supports IEEE 802.3bt Class 8 90W PoE for high-powered application. Combined with 6 x 802.3 af/at PoE Gigabit ports, 2 x 802.3 bt PoE Gigabit ports, and 4 x SFP ports, the EKI-7712G-4FMPI provides multiple usage for different scenario. The EKI-7712G-4FMPI is embedded with Advantech’s IXM function, which can benefit users with fast deployment and can save considerably engineering time and costs. It also supports NMS to help IT managers with networking maintenance and failure prevention. The series are also equipped with X-Ring Pro, which can achieve ultra-high-speed recovery times of
