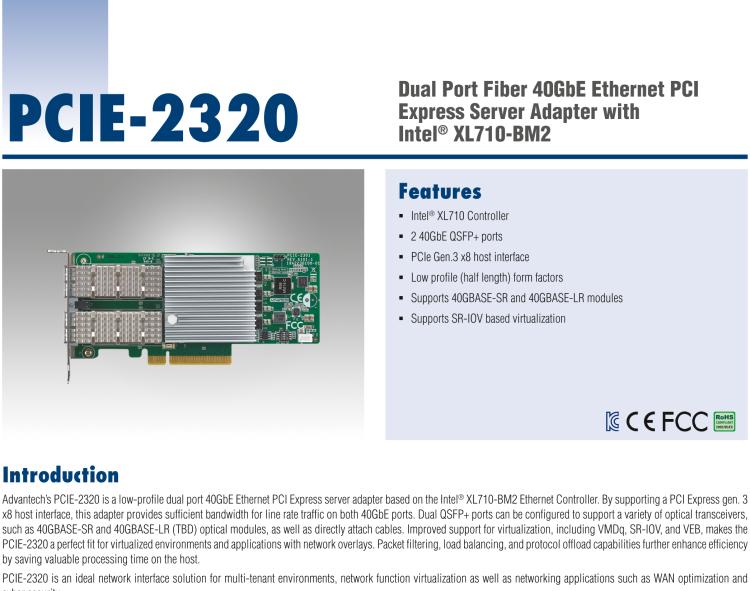

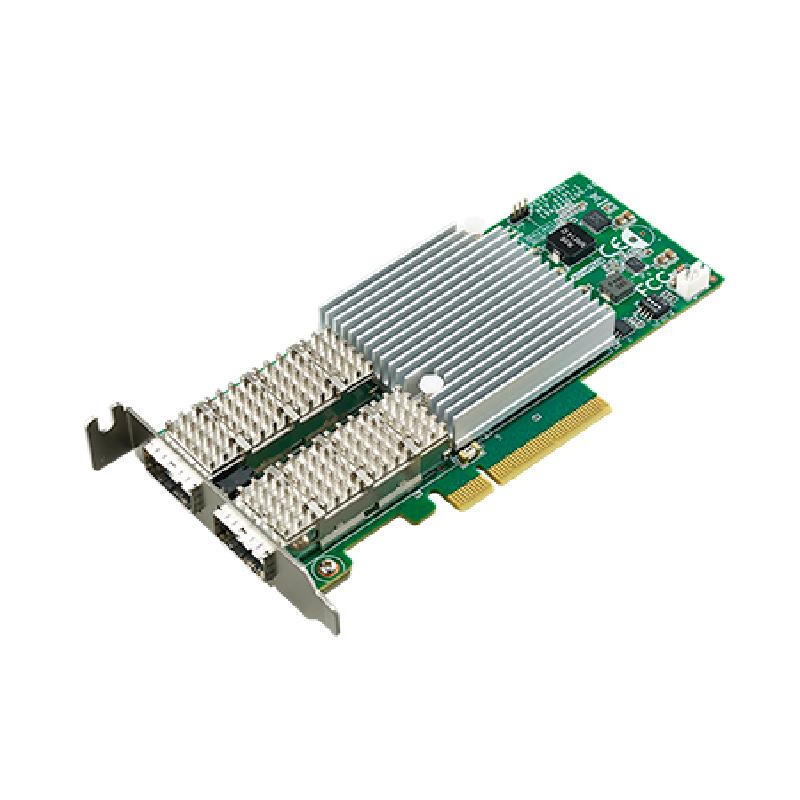

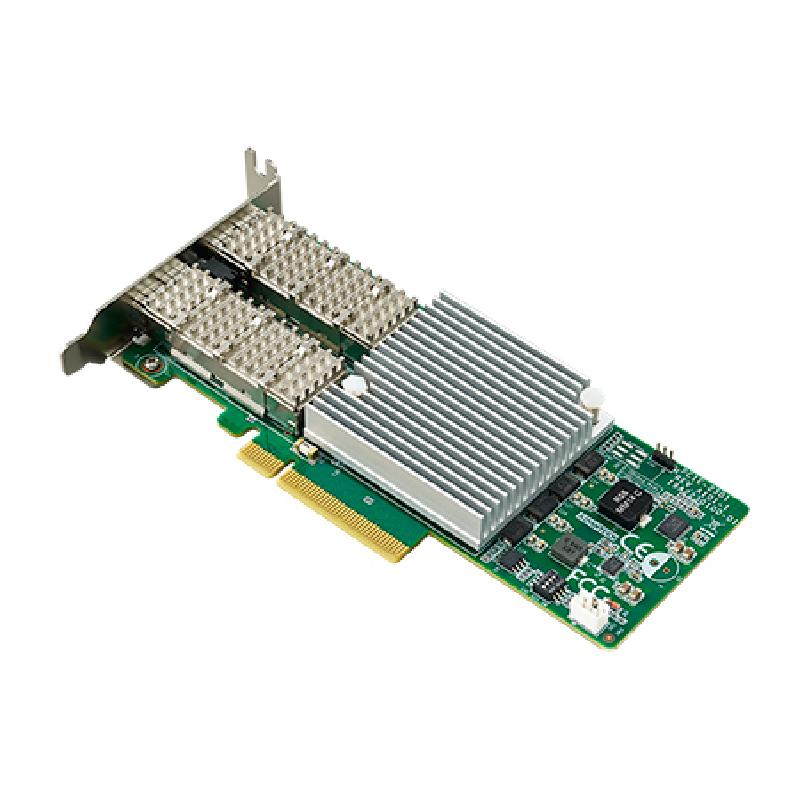

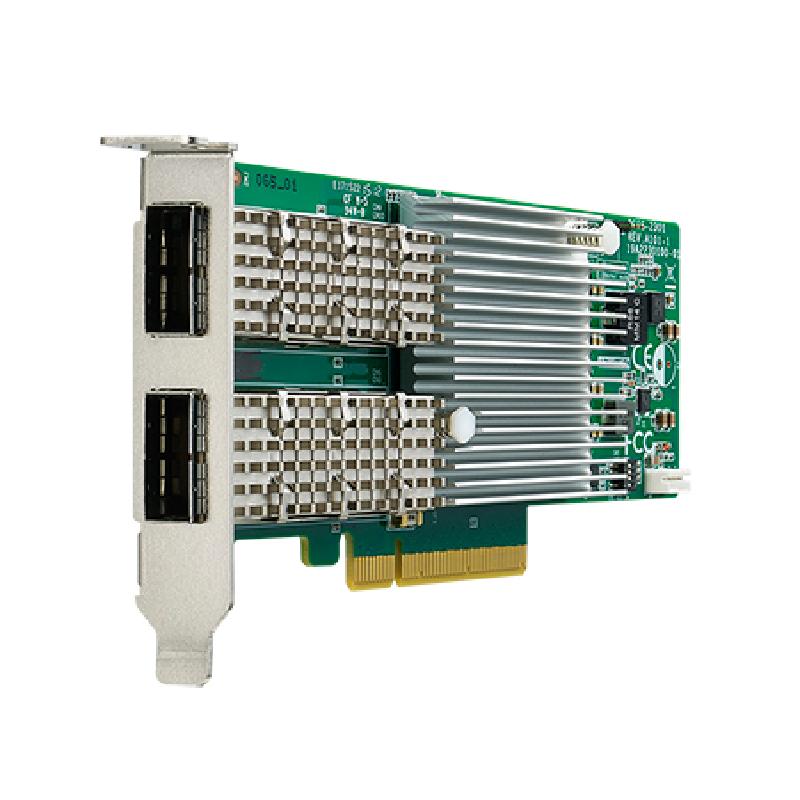

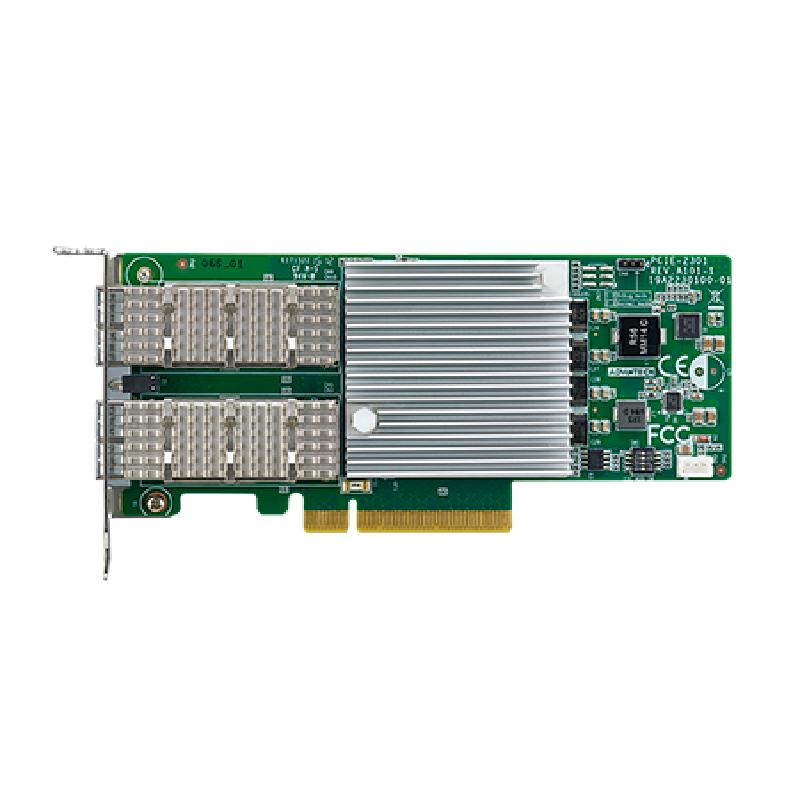

研華PCIE-2320 Dual Port Fiber 40GbE Ethernet PCI Express Server Adapter with Intel? XL710-BM2

研華PCIE-2320 Dual Port Fiber 40GbE Ethernet PCI Express Server Adapter with Intel? XL710-BM2


  • Intel? XL710 Controller
  • 2 40GbE QSFP+ ports
  • PCIe Gen.3 x8 host interface
  • Low profile (half length) form factors
  • Supports 40GBASE-SR and 40GBASE-LR modules
  • Supports SR-IOV based virtualization
  • Advantech’s PCIE-2320 is a low-profile dual port 40GbE Ethernet PCI Express server adapter based on the Intel? Ethernet Controller XL710-BM2. By supporting a PCI Express gen. 3 x8 host interface, this adapter provides sufficient bandwidth for line rate traffic on all two 40GbE ports. Dual QSFP ports can be configured to support a variety of optical transceivers such as 40GBASE-SR and 40GBASE-LR (TBD) optical modules as well as direct attach cables. Improved support for virtualization, including VMDq, SR-IOV and VEB make the PCIE-2320 a perfect fit for virtualized environments and applications with network overlays. Packet filtering, load balancing and protocol offload capabilities further enhance efficiency by saving valuable processing time on the host. PCIE-2320 is an ideal network interface solution for multi-tenant environments, Network Function Virtualization as well as networking applications such as WAN optimization and cyber security.
