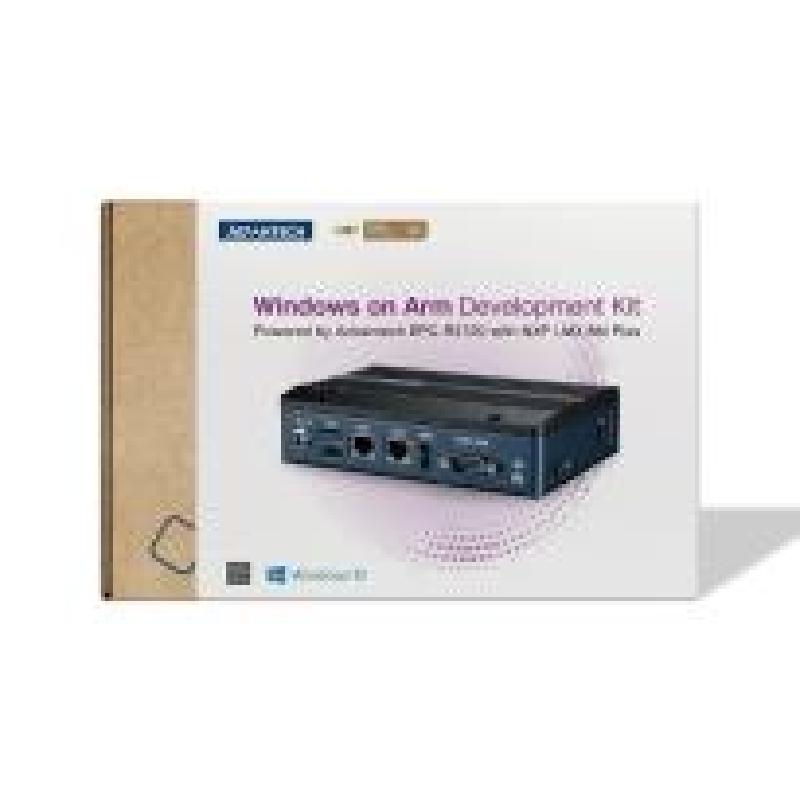

研華EPC-R3720DK EPC-R3720 w/ UIO-4032 and Windows On Arm

研華EPC-R3720DK EPC-R3720 w/ UIO-4032 and Windows On Arm


  • NXP i.MX8M Plus Cortex-A53 Quad at1.8GHz
  • On-board LPDDR4 6 GB, 4000MT/s memory
  • HDMI up to 3840 x 2160 at 30Hz resolution
  • Dual GbE LAN, 1 USB2.0 and 1 USB 3.2 Gen 1
  • 1 Micro SD Socket & 1 Nano SIM Slot
  • 1 mini-PCIe for 3G/4G, 1 M.2 2230 Key E for Wi-Fi & BT
  • Supports Windows 10 IoT Enterprise on Arm
  • Built UIO-4032 to support 1 GbE LAN, 2USB 2.0 and 2 RS-232
  • EPC-R3720 is an ARM? Cortex?-A53 i.MX8MPlus-based secured, compact-sized, low-power consumed, HDR-Capable ISP of 375 MPixels/s, Mini-PCIe for 3G/4G and M.2 Key E for Wi-Fi&BT built-in UIO-4032 for 1 GbE, 2 USB2.0 and 2 RS-232 and preload Windows On Arm.
