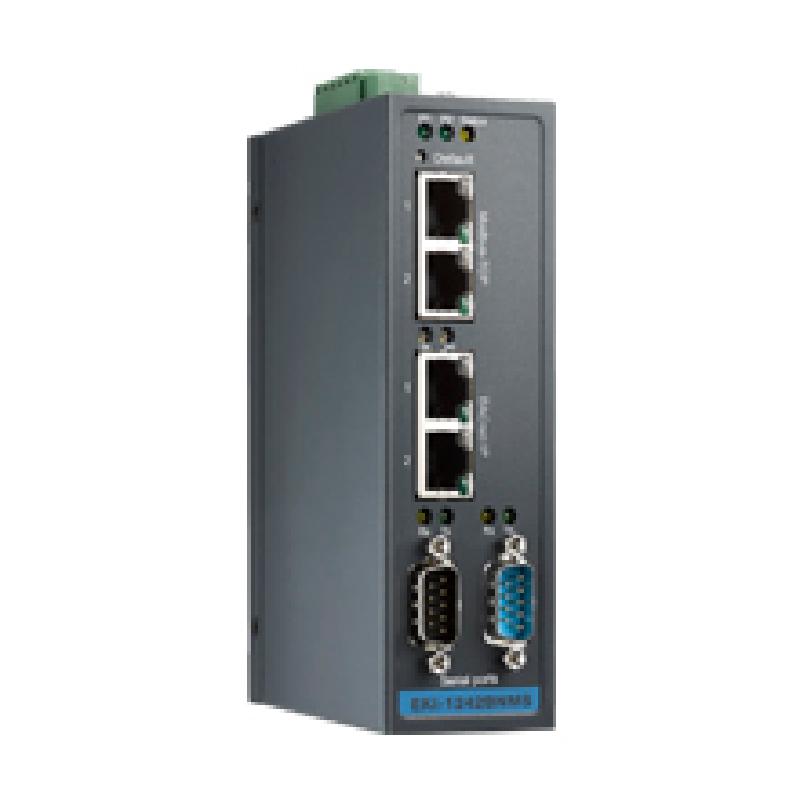

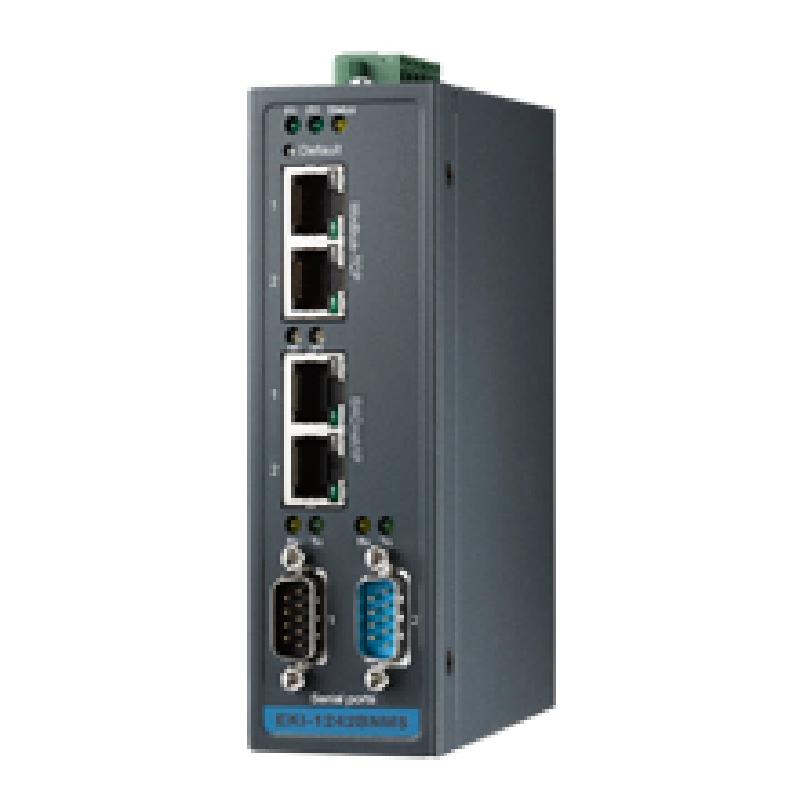

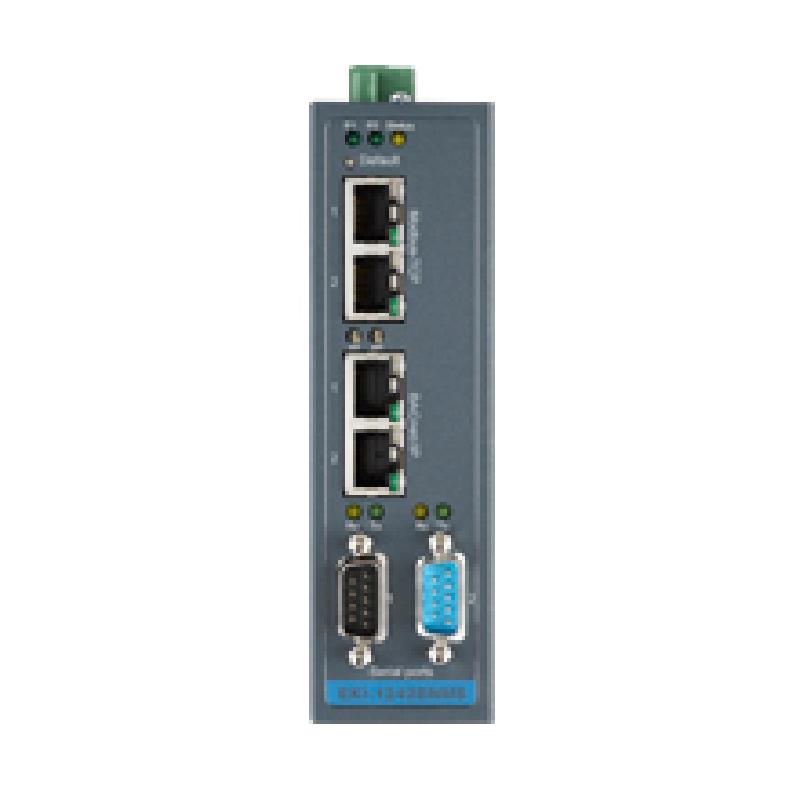

研華EKI-1242IBNMS Modbus RTU/TCP to BACnet IP/MSTP Fieldbus Gateway, Wide Temperature

研華EKI-1242IBNMS Modbus RTU/TCP to BACnet IP/MSTP Fieldbus Gateway, Wide Temperature


  • Seamless integrates Modbus RTU/TCP and BACnet IP/MSTP communication.
  • Modbus client mode supports 64 connections.
  • Designed for protocol extensibility and adaption
  • Built-in real time diagnostic to increase highly efficiency of device management
  • Supports dual power input for power redundancy
  • Mounts on DIN-rail and Wall mount
  • The EKI-1242BNMS Industrial Fieldbus gateway provides seamless communication between Fieldbus and Industrial Ethernet, integrating new and existent Modbus RTU/TCP devices with BACnet IP/MSTP networks. Adopting EKI-1242BNMS is a simple and cost-effective way to bring the advantage of fast I/O data transfers between devices.
