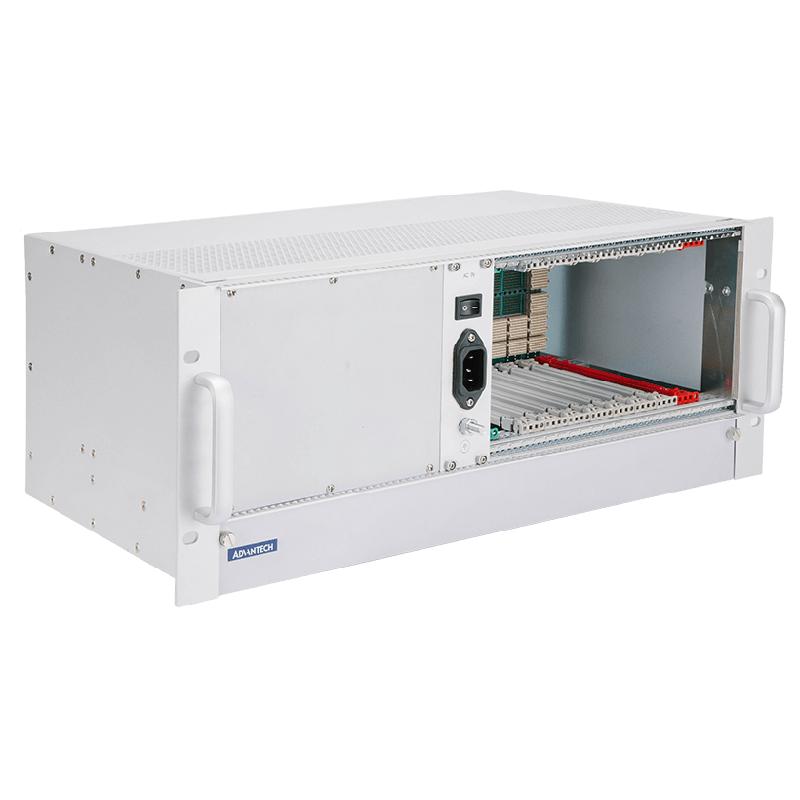

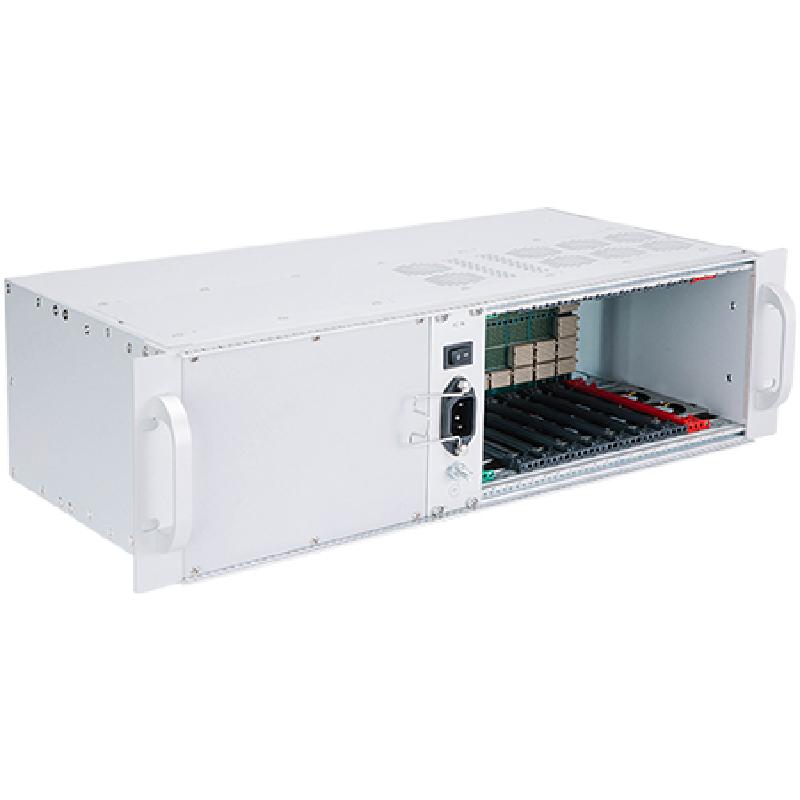

研華MIC-300A MIC-300A is a standard 3U/4U Compact? Serial 84HP or 44HP width enclosure for 3U CPCI-serial board.

研華MIC-300A MIC-300A is a standard 3U/4U Compact? Serial 84HP or 44HP width enclosure for 3U CPCI-serial board.


  • 4U/3U height 84HP/44HP enclosure options with 8-slot CPCI-s backplane
  • Built-in efficient cooling system in chassis
  • PCIe (Gen3), SATA (Gen3), USB2.0/USB3.0, Ethernet (10GBase-T) interfaces support
  • The backplane Ethernet routing from the system slot to the peripheral slot is fully meshed
  • PICMG CompactPCI Serial (CPCI-S.0 R2.0) compliant
  • Advantech MIC-300A is a standard 3U/4U CompactPCI? Serial 84HP or 44HP width enclosure for 3U CPCI-serial board,equipped with 8-slot CPCI-S backplane. 2-slot power adaptor board is integrated with backplane Built-in efficient cooling system in chassis。
