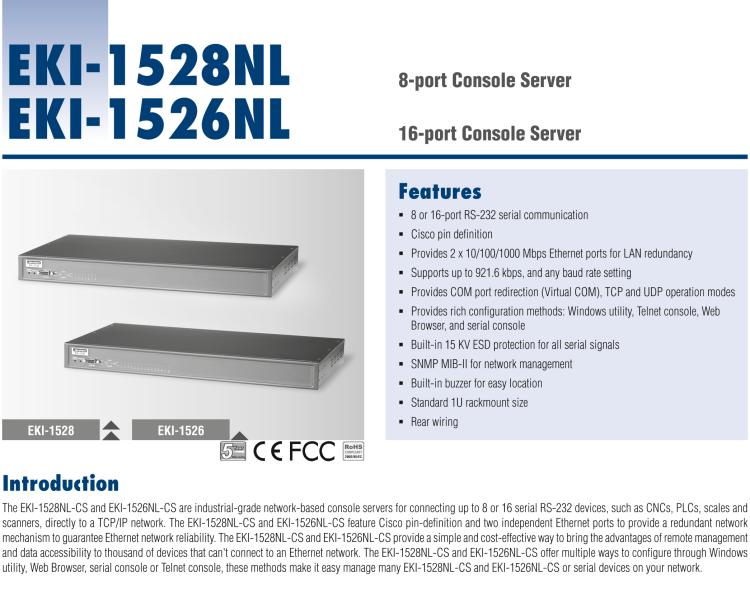

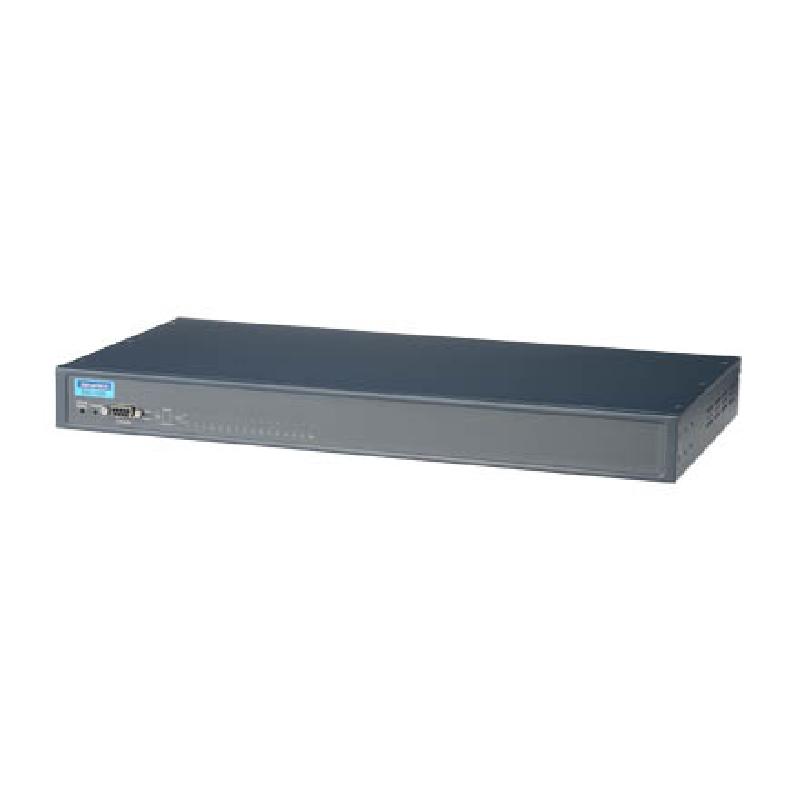

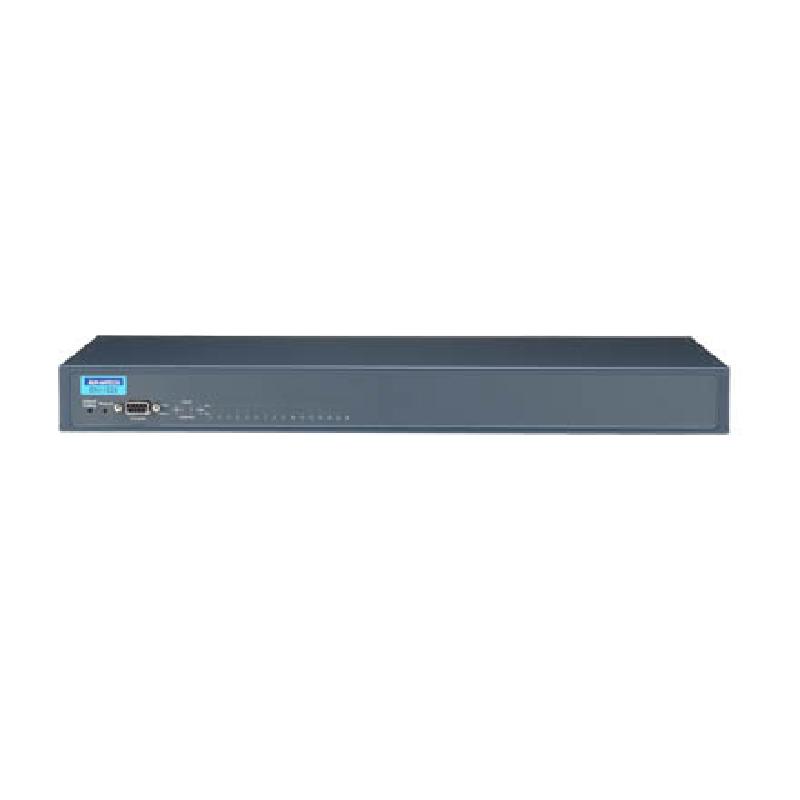

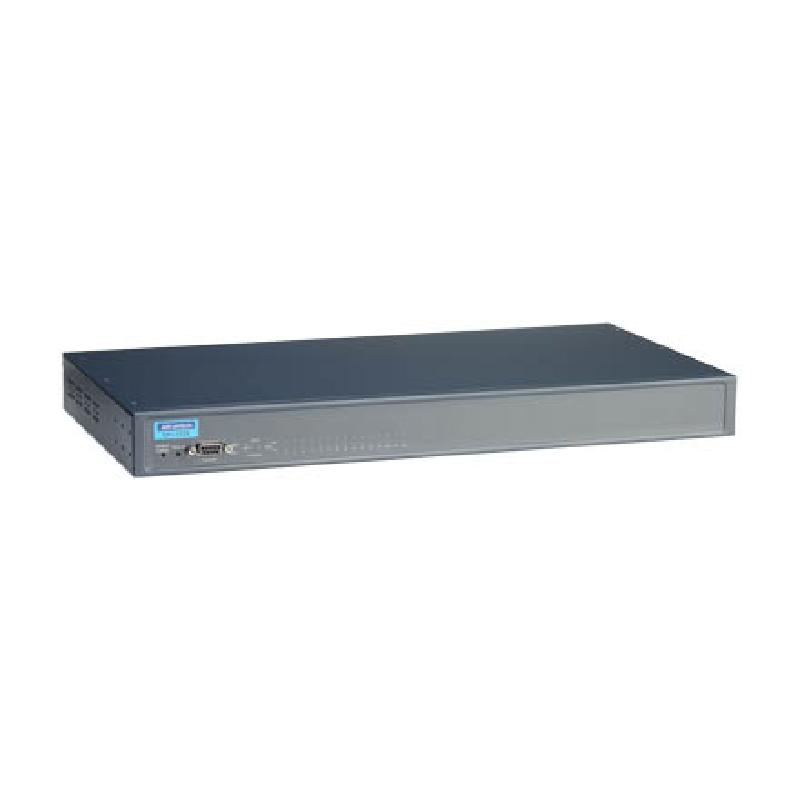

研華EKI-1526NL 16-Port Console Server

研華EKI-1526NL 16-Port Console Server

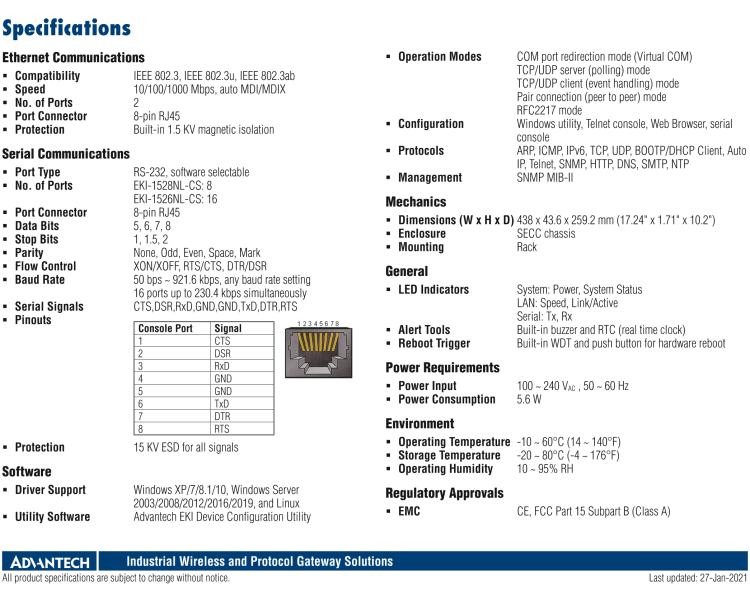

  • 16-port RS-232 serial communication
  • Cisco pin definition

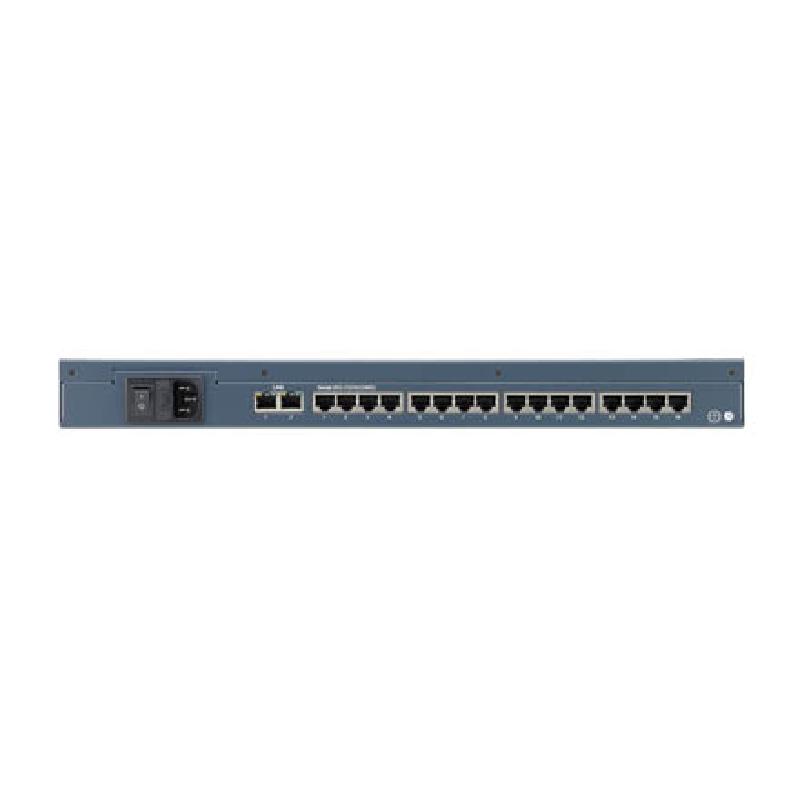

  • Provides 2 x 10/100/1000 Mbps Ethernet ports for LAN redundancy
  • Supports up to 921.6 kbps, and any baud rate setting
  • Provides COM port redirection (Virtual COM), TCP and UDP operation modes
  • Provides rich configuration methods: Windows utility, Telnet console, Web Browser, and serial console
  • Built-in 15 KV ESD protection for all serial signals
  • SNMP MIB-II for network management
  • Built-in buzzer for easy location
  • The EKI-1528NL-CS and EKI-1526NL-CS are industrial-grade network-based console servers for connecting up to 8 or 16 serial RS-232 devices, such as CNCs, PLCs, scales and scanners, directly to a TCP/IP network.
