可選配置:
IPC527G/G4400/4G/500G/適配器
IPC527G/i5-6500/8G/128G固態/適配器
IPC527G/i5-6500/8G*2/256G固態/適配器
IPC527G/i7-6700/8G*2/512G固態/適配器
IPC527G/I7 6700/8G/1T機械/適配器
備注:也可以根據客戶需求定制產品。
產品規格

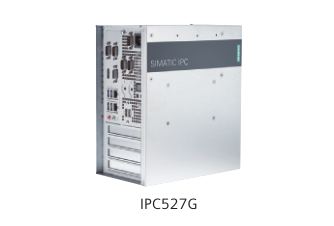

SIMATIC IPC527G | |||||||
處理器 | Intel? Pentium? Processor G4400 (3M Cache, 3.30 GHz) | Intel? Core? i5-6500 Processor (6M Cache, up to 3.60 GHz) | Intel? Core? i7-6700 Processor (8M Cache, up to 4.00 GHz) | ||||
內存 | SODIMM * 2 | 4G DDR4 SDRAM 8G DDR4 SDRAM 16G DDR4 SDRAM | |||||
芯片組 | Intel? H110 | ||||||
擴展槽 | 1×PCIe×16 slot,1×PCIe×1 slot,2×PCI slot | ||||||
顯示接口 | 1×VGA (DB-15) VGA support max to 1920×1200 pixels 1×DP (DDI) DP support max to 4K | ||||||
存儲 | 2.5” * 2 M.2 * 1 | 128 GB,2.5” SSD SATA | 256 GB,2.5” SSD SATA | 512 GB,2.5” SSD SATA | 1 TB,2.5” HDD SATA | M.2 SSD2242 Key B slot(sata3.0) | |
網絡 | 2×RJ45 Ethernet 10/100/1000 Mbps(intel I210AT) | ||||||
COM | 2×RS232 / RS422 / RS485 + 2×RS232 | ||||||
USB | 4×USB 3.0 (900mA) + 2×USB 2.0 (500mA,USB 內置1×USB 2.0 立式垂直) | ||||||
DIO | DB9 連接器,Digital Input (5V TTL) and Output (5V 12mA) | ||||||
電源 | 100 VAC to 240 VAC (-10%,+10%) | ||||||
安裝方式 | 桌面式,壁掛式,書本立式,塔式 | ||||||
重量 | 大約5.0kg | ||||||
操作系統 | Windows 7 Ultimate 32-bit (MUI),SP1 Windows 7 Ultimate 64-bit (MUI),SP1 Windows 10 Enterprise 2016 LTSB (Long Time Service Branch) 64-bit (MUI) |
