32通道隔離數字輸出
高輸出驅動力
D-型隔離輸出通道連接器
輸出通道高壓隔離
.
產品規格
PCI-1734-CE | |
功耗 | Typical: 5 V @ 150 mA, 12 V @ 15 mA, Max.: 5 V @ 250 mA |
OS支持 | 32-bit/64-bit Windows 7/8/10, and Linux
|
尺寸 | 175 x 100 mm (6.9" x 3.9")
|
接口 | PCI |
I/O連接器 | 37-pin D-Sub female |
操作溫度 | 0 ~ 60°C (32 ~ 140°F) |
程序設計語言 | C#,C++,LabVIEW,VB.Net,BCB,MFC,VB6,Delphi,Java,Matlab,Qt |
輸出通道 | 32 |
輸出范圍 | 5 ~ 40 VDC |
訂購信息
1、PCI-1730U:32-ch Isolated Digital I/O Univ. PCI Card
2、PCI-1733:32-ch Isolated Digital Input PCI Card

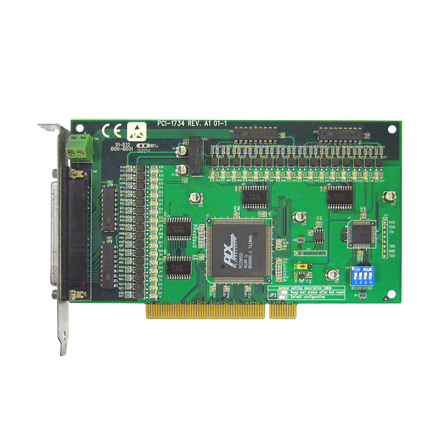

3、PCI-1734:32-ch Isolated Digital Output PCI Card
附件
1、PCL-10120-1E:20-pin Flat Cable, 1 m
2、PCL-10120-2E:20-pin Flat Cable, 2 m
3、ADAM-3920:20-pin DIN-rail Flat Cable Wiring Board
4、PCLD-782:16-ch Isolated DI Board w/ 1m 20-pin Flat Cable
5、PCLD-885:16-ch Power Relay Board w/ 20p & 50p Flat Cables
6、PCLD-785:16-ch Relay Board w/ One 1m 20-pin Flat Cable
7、ADAM-3937:DB37 DIN-rail Wiring Board
8、PCL-10137-1E:DB37 Cable, 1 m
9、PCL-10137-2E:DB37 Cable, 2 m
10、PCL-10137-3E:DB37 Cable, 3 m
