研華AMAX-3245 4-axis EtherCAT Motion SubDevice

研華AMAX-3245 4-axis EtherCAT Motion SubDevice

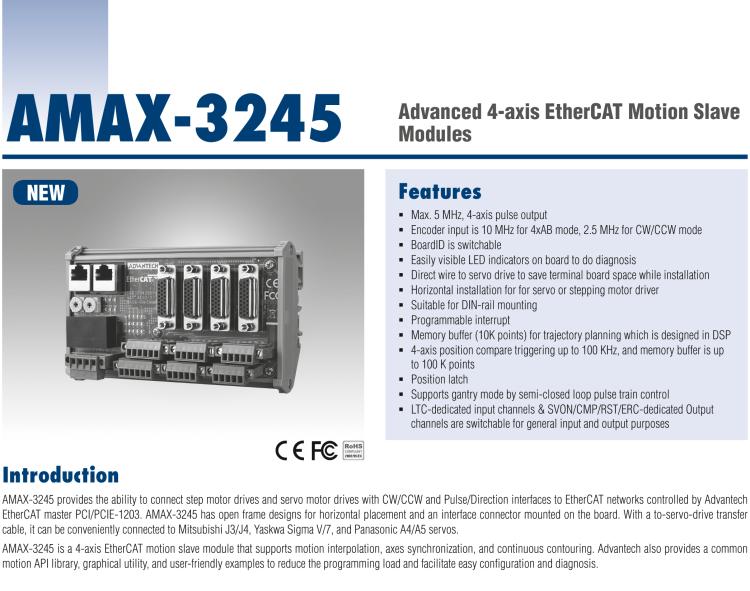

  • Max. 5 MHz, 4-axis pulse output
  • Encoder input is 10 MHz for 4xAB mode, 2.5 MHz for CW/CCW mode
  • BoardID is switchable
  • Easily visible LED indicators on board to do diagnosis
  • Direct wire to servo drive to save terminal board space while installation
  • Horizontal installation for for servo or stepping motor driver
  • Suitable for DIN-rail mounting
  • Programmable interrupt
  • Memory buffer (10K points) for trajectory planning which is designed in DSP
  • 4-axis position compare triggering up to 100 KHz, and memory buffer is up to 100 K points
  • Position latch
  • Supports gantry mode by semi-closed loop pulse train control
  • LTC-dedicated input channels & SVON/CMP/RST/ERC-dedicated Output channels are switchable for general input and output purposes

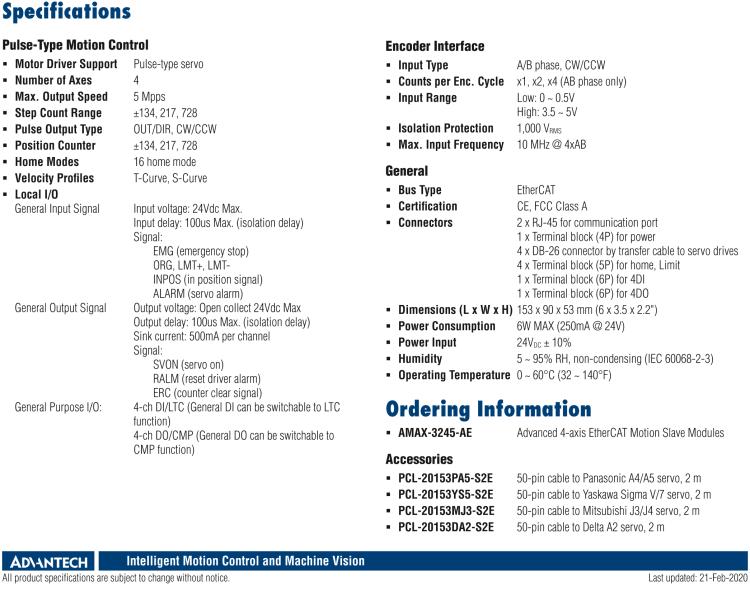

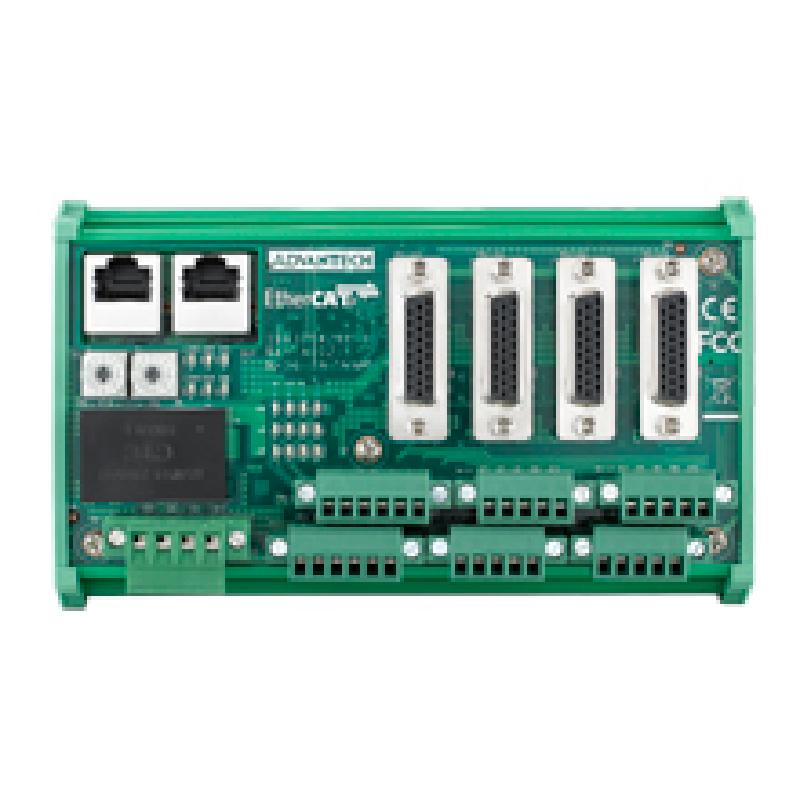

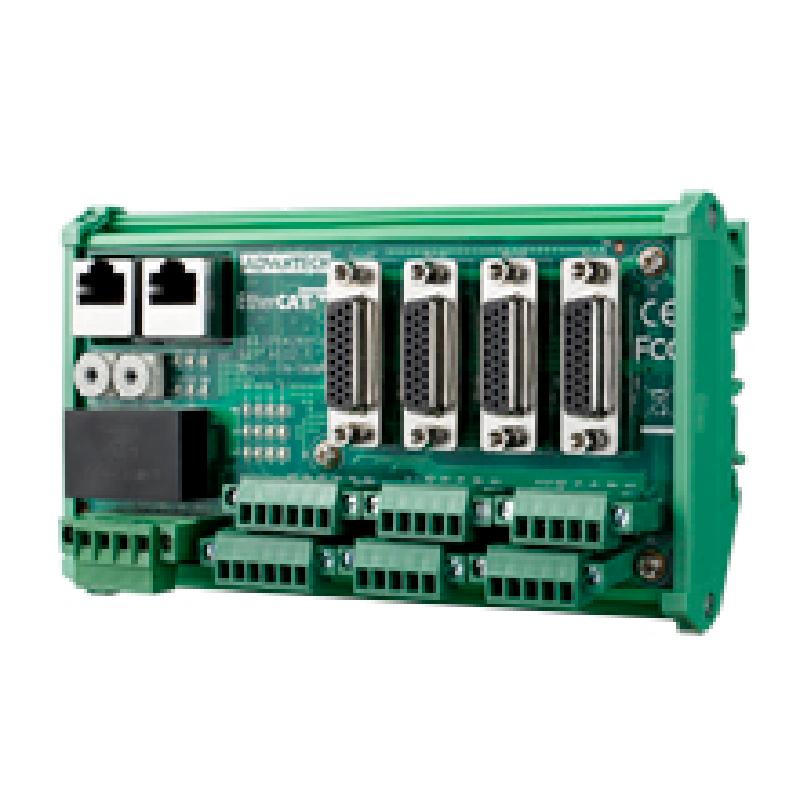

  • AMAX-3245 provides the ability to connect step motor drives and servo motor drives with CW/CCW and Pulse/Direction interfaces to EtherCAT networks controlled by Advantech PCI/PCIE-1203. AMAX-3245 has open frame designs for horizontal placement and an interface connector mounted on the board.
