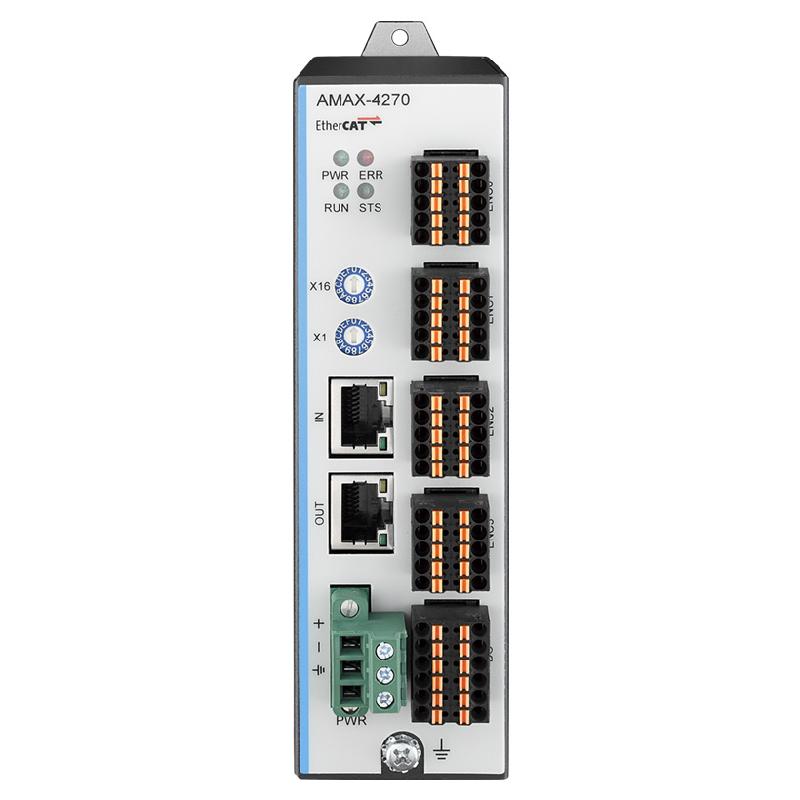

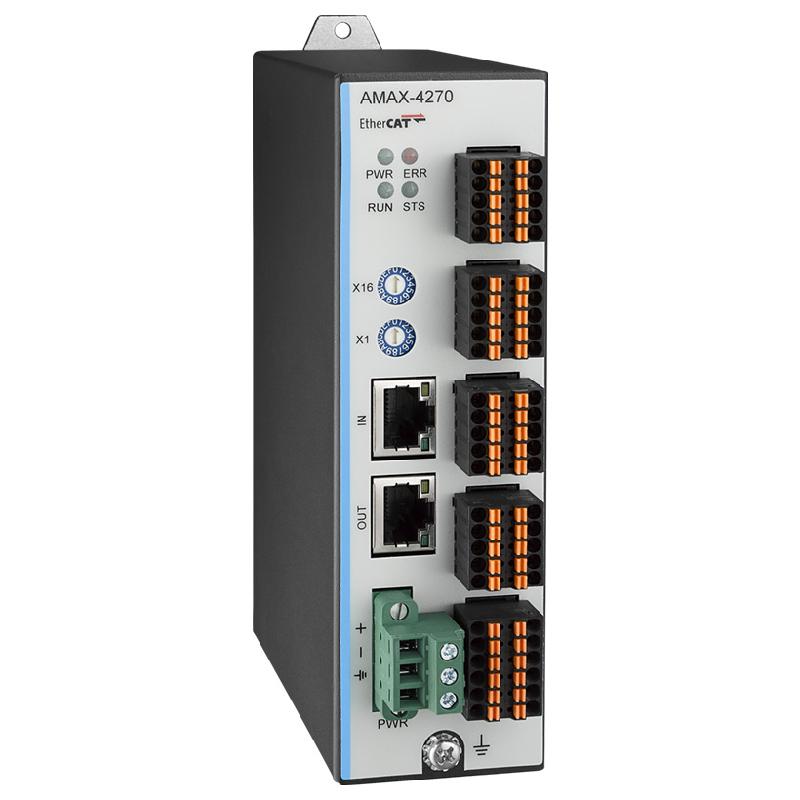

研華AMAX-4270 4-channel High Speed Trigger and Latch EtherCAT Module

研華AMAX-4270 4-channel High Speed Trigger and Latch EtherCAT Module


  • 4-channel 32-bit encoder counters
  • Encoder input mode : CW/CCW , Pulse/Direction, A/B Phase
  • Encoder input signal : A, B, Z
  • Encoder input frequency : 5 MHz (Maximum)
  • 4-channel trigger DO for position compare
  • Trigger output frequency : 10 kHz; latch input frequency : 10kHz
  • Trigger output mode : sink, source, TTL
  • Supports trigger delay time setting for each channel
  • 4-channel latch DI for position latch
  • AMAX-4270 provides 32-bit 4-channel counter/encoder for incremental encoders, supporting CW/CCW, Pulse/Direction and A/B mode. The trigger output supports sink, source and TTL type with 10kHz frequency, providing trigger delay time function for each trigger output channel and 1D, 2D position compare
