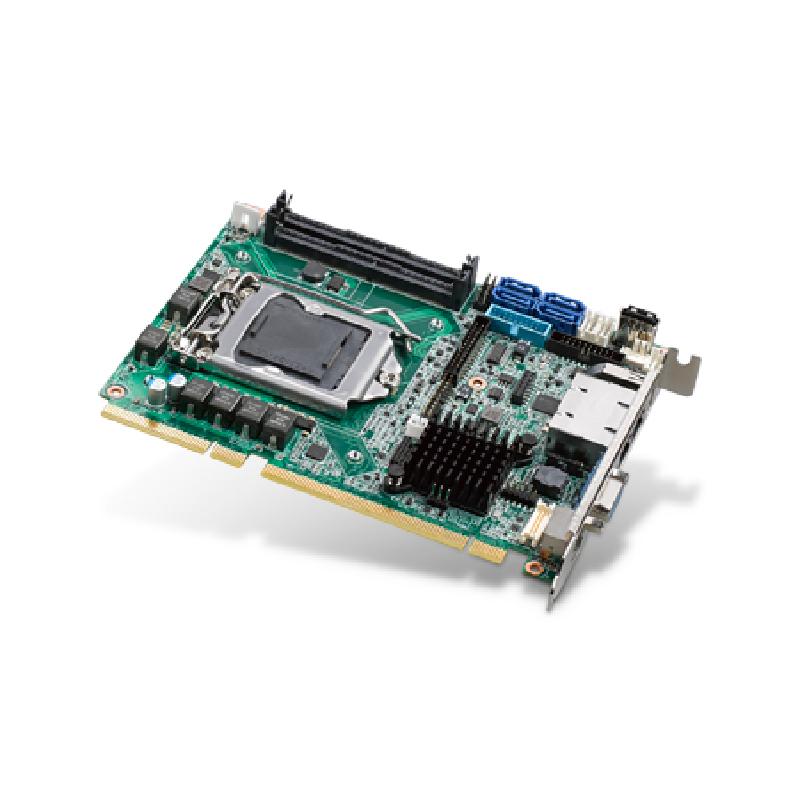

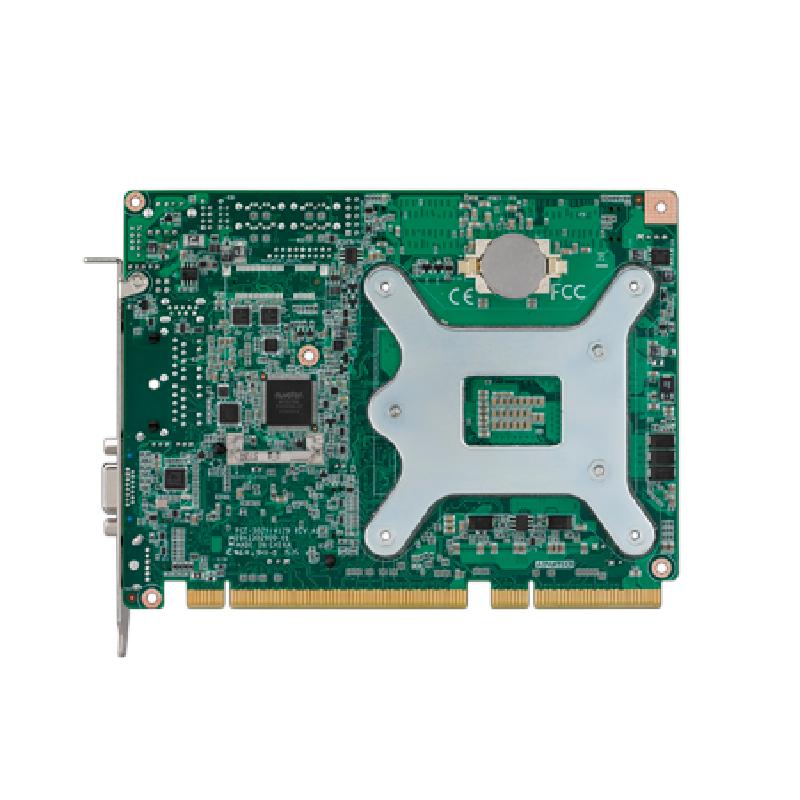

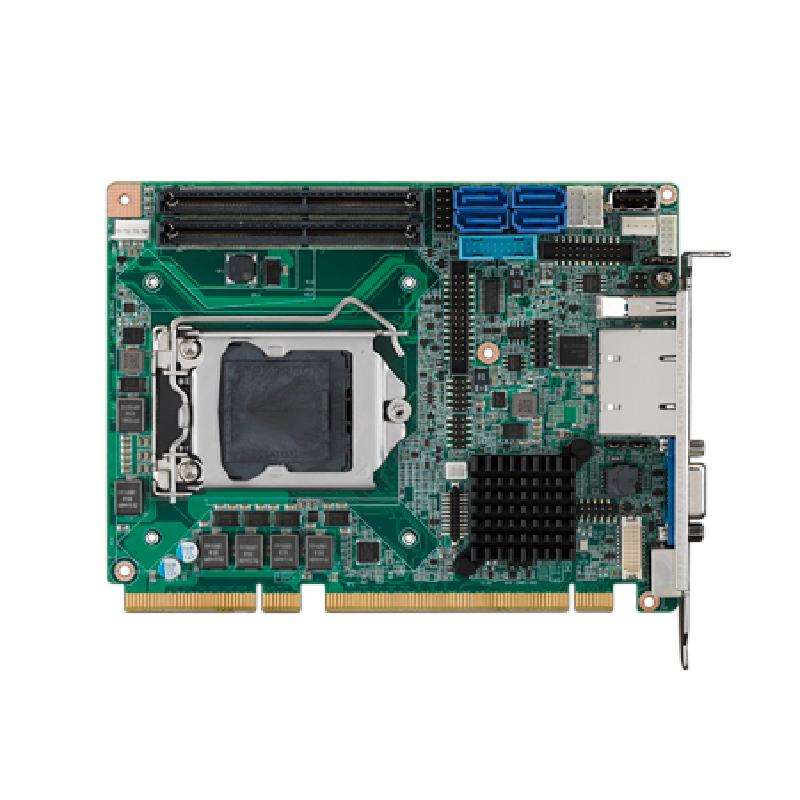

研華PCE-3029 LGA 1151 6th Gen Intel? Core? i7/i5/i3 Half-size SHB with PCIe 3.0/ Dual Independent Display/Dual GbE LAN/SATA III/m-SATA/ USB 3.0

研華PCE-3029 LGA 1151 6th Gen Intel? Core? i7/i5/i3 Half-size SHB with PCIe 3.0/ Dual Independent Display/Dual GbE LAN/SATA III/m-SATA/ USB 3.0

  • Complies with PICMG 1.3
  • Supports Intel? Core? i7/i5/i3/Celeron?/Pentium? processor with H110 chipset
  • Dual Channel (Non-ECC) DDR4 1866/2133 up to 32 GB
  • Supports USB 3.0, SATA III, PCIe 3.0
  • Supports CRT and DVI-D/DP (optional) display
  • Supports Advantech TPM module (optional)
  • Supports WISE-DeviceOn and embedded software APIs
  • LGA 1151 6th Gen Intel? Core? i7/i5/i3 Half-size SHB with PCIe 3.0/ Dual Independent Display/Dual GbE LAN/SATA III/m-SATA/ USB 3.0
