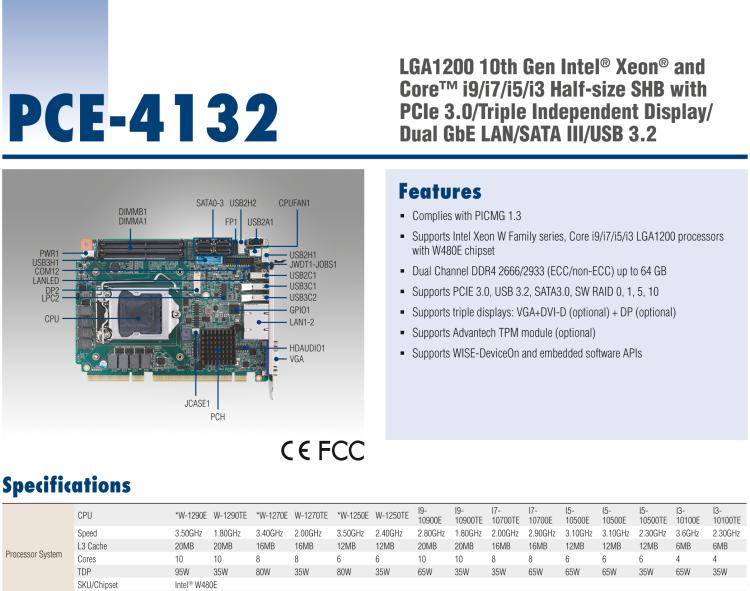

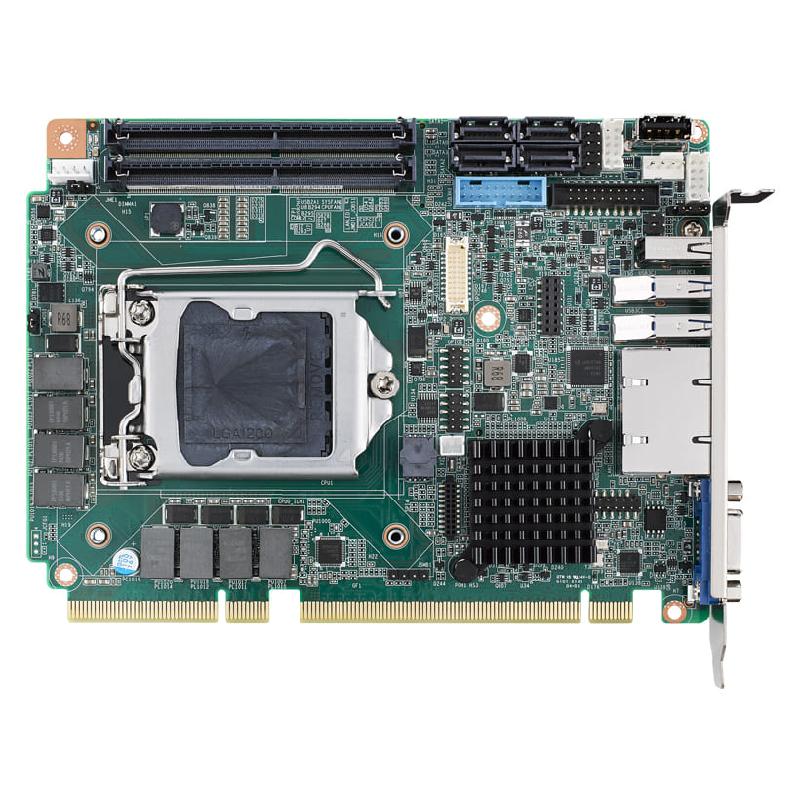

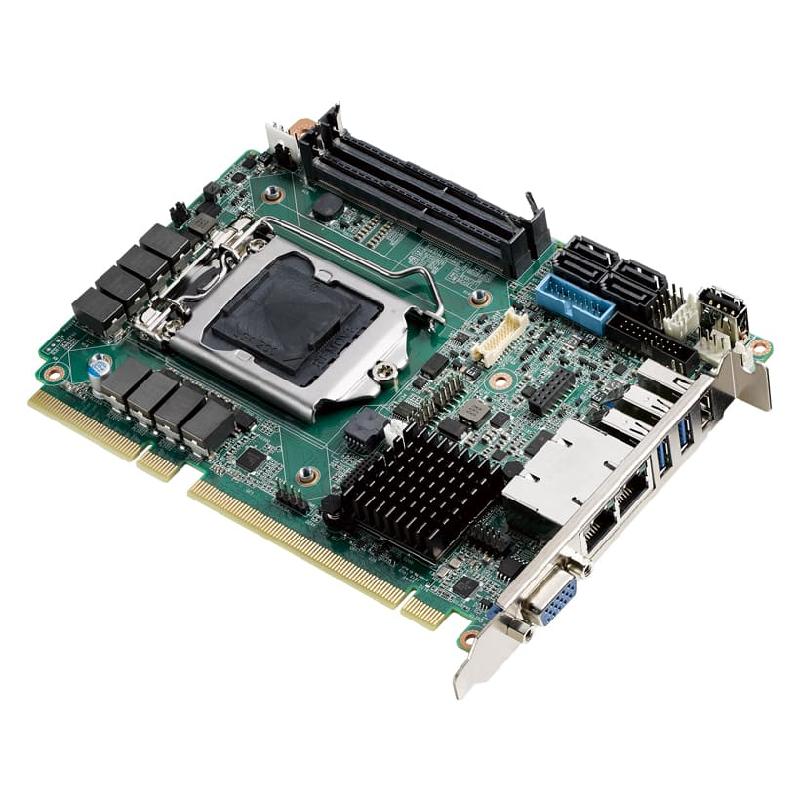

研華PCE-4132 LGA1200 10th Gen Intel? Xeon? and Core? i9/i7/i5/i3 Half-size SHB with PCIe 3.0/Triple Independent Display/Dual GbE LAN/SATA III/USB 3.2

研華PCE-4132 LGA1200 10th Gen Intel? Xeon? and Core? i9/i7/i5/i3 Half-size SHB with PCIe 3.0/Triple Independent Display/Dual GbE LAN/SATA III/USB 3.2

  • Complies with PICMG 1.3
  • Supports Intel Xeon W Family series, Core i9/i7/i5/i3 LGA1200 processors with W480E
  • Dual Channel DDR4 2666/2933 (ECC/non-ECC) up to 64 GB
  • Supports PCIE 3.0, USB 3.2, SATA3.0, SW RAID 0, 1, 5, 10
  • Supports triple displays: VGA+DVI-D (optional) + DP (optional)
  • Supports out-of-band remote management with AMT9.0
  • Supports Advantech TPM module (optional)
  • Supports SUSIAccess and embedded software APIs
  • LGA1200 10th Gen Intel? Xeon? and Core? i9/i7/i5/i3 Half-size SHB with PCIe 3.0/Triple Independent Display/Dual GbE LAN/SATA III/USB 3.2
