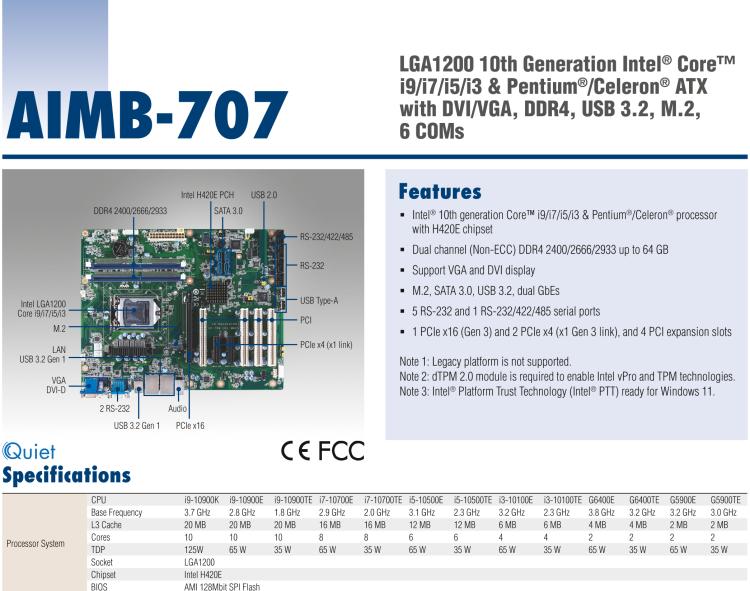

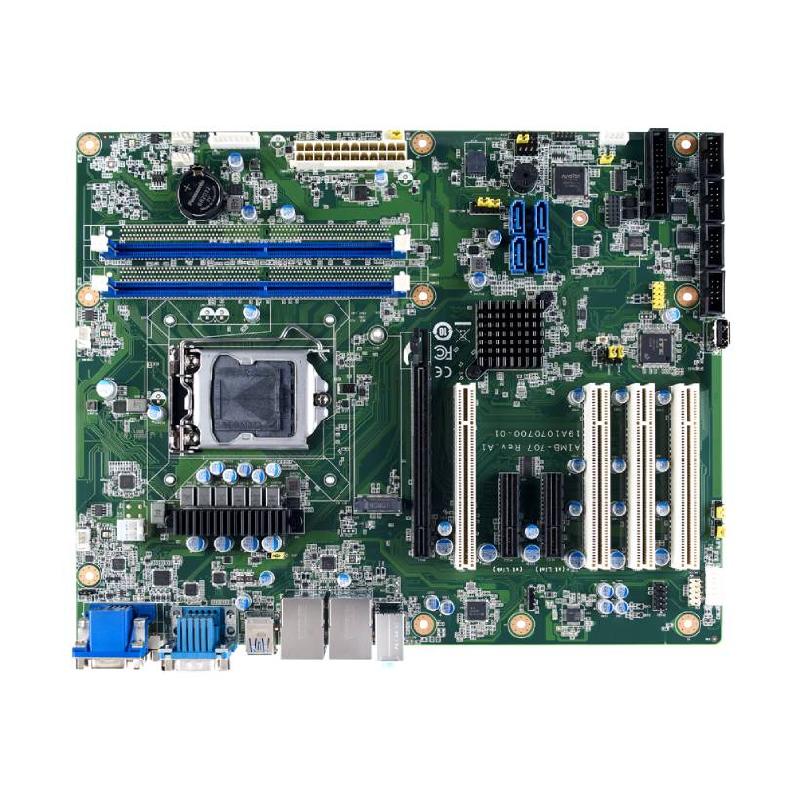

研華AIMB-707 LGA1200 10th Generation Intel? Core? i9/i7/i5/i3 & Pentium?/Celeron? ATX with DVI/VGA, DDR4, USB 3.2, M.2, 6 COMs

研華AIMB-707 LGA1200 10th Generation Intel? Core? i9/i7/i5/i3 & Pentium?/Celeron? ATX with DVI/VGA, DDR4, USB 3.2, M.2, 6 COMs

  • Intel? 10th generation Core? i9/i7/i5/i3 & Pentium?/Celeron? processor with H420E chipset
  • Dual channel (Non-ECC) DDR4 2400/2666/2933 up to 64 GB
  • Support VGA and DVI display
  • M.2, SATA 3.0, USB 3.2, dual GbEs
  • 5 RS-232 and 1 RS-232/422/485 serial ports
  • 1 PCIe x16 (Gen 3) and 2 PCIe x4 (x1 Gen 3 link), and 4 PCI expansion slots
  • Note 1: Legacy platform is not supported.
  • Note 2: dTPM 2.0 module is required to enable Intel vPro and TPM technologies.
  • Note 3: Intel? Platform Trust Technology (Intel? PTT) ready for Windows 11.
  • LGA1200 10th Generation Intel? Core? i9/i7/i5/i3 & Pentium?/Celeron? ATX with DVI/VGA, DDR4, USB 3.2, M.2, 6 COMs
