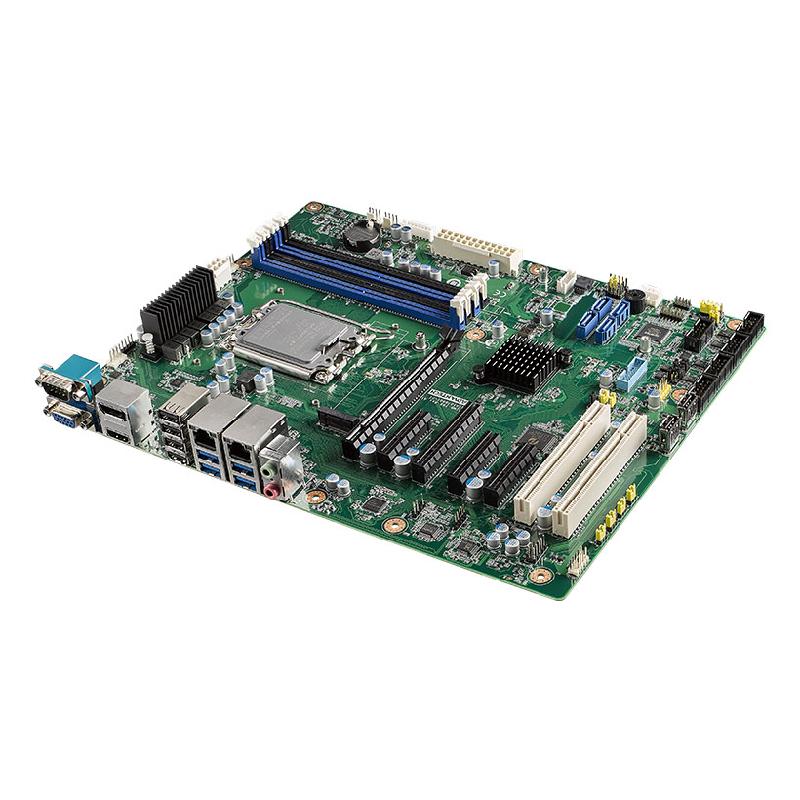

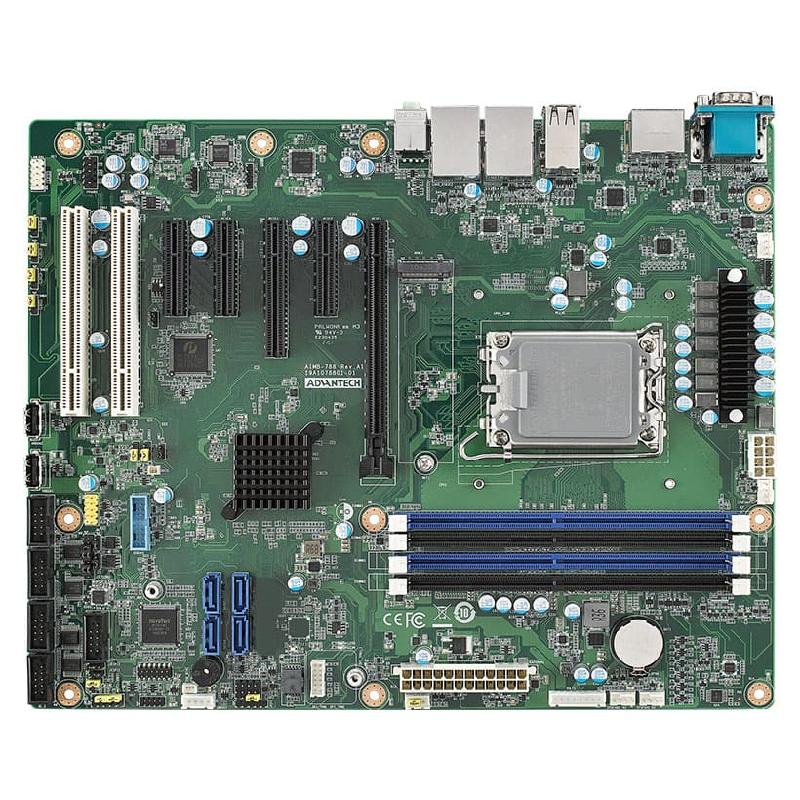

研華AIMB-788 LGA1700 12th/13th Generation Intel? Core? i9/i7/i5/i3 ATX Motherboard with DP/HDMI/VGA, DDR4, USB 3.2, M.2

研華AIMB-788 LGA1700 12th/13th Generation Intel? Core? i9/i7/i5/i3 ATX Motherboard with DP/HDMI/VGA, DDR4, USB 3.2, M.2


  • Intel? 12th/13th generation Core? i9/i7/i5/i3 & Pentium?/Celeron? processor with Q670E chipset
  • Four DIMM sockets up to 128 GB DDR4 3200
  • Triple display DP/HDMI/VGA and dual GbE LAN
  • M.2, SATA RAID 0, 1, 5, 10, USB 3.2 Gen 2
  • Advantech iBMC remote out-of-band power management solution on DeviceOn
  • Qualified for AWS (Amazon Web Service) IoT Greengrass
  • Note 1: Legacy platform is not supported.
  • Note 2: dTPM 2.0 module is required to enable Intel vPro and TPM technologies.
  • Note 3: Intel? Platform Trust Technology (Intel? PTT) ready for Windows 11.
  • LGA1700 12th/13th Generation Intel? Core? i9/i7/i5/i3 ATX Motherboard with DP/HDMI/VGA, DDR4, USB 3.2, M.2
